KINGREAL is a professional Automatic Heavy Duty Hydraulic Decoiler manufacturer in China and can provide customers with feeding equipment for uncoiling, leveling and feeding, including 1300 Steel Uncoiler Heavy Duty Hydraulic Decoiler.
Video About Combine Decoiler Lever And Punching Machine
What is Automatic Heavy Duty Hydraulic Decoiler?
Hydraulic uncoiling is a kind of equipment that uses hydraulic system to control the opening and closing of coils (such as steel coils, aluminum coils, etc.). Hydraulic action is the use of liquid to transmit force and control the mechanical movement through the change of pressure.
Hydraulic system consists of hydraulic pump, hydraulic cylinder, hydraulic valve, etc., which can realize efficient and accurate mechanical control. In hydraulic uncoiling, the hydraulic system can control the speed, force and position of the coil opening and closing, so as to achieve precise control and operation of the coil.

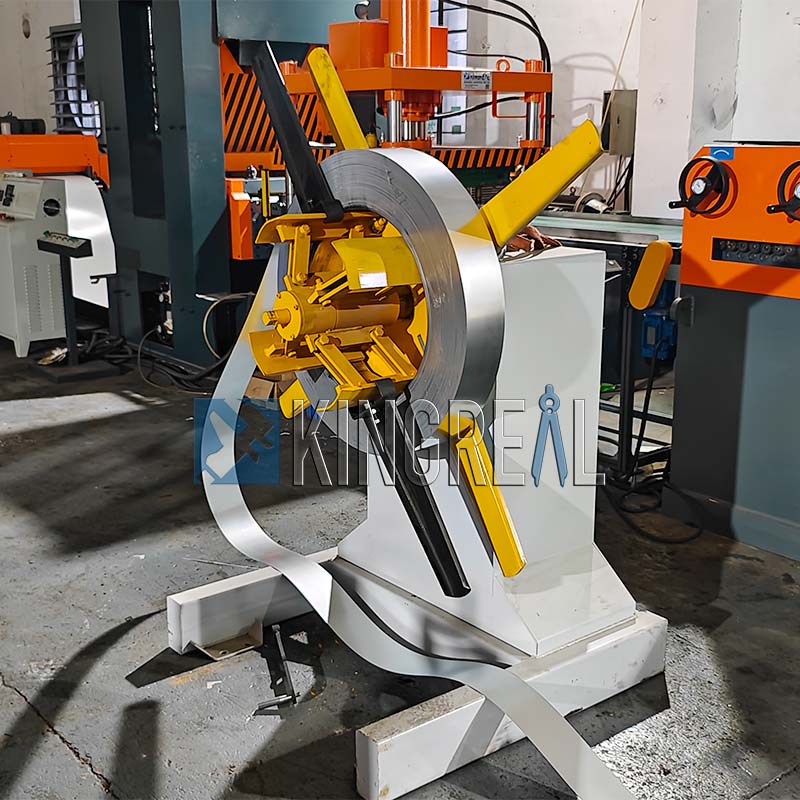

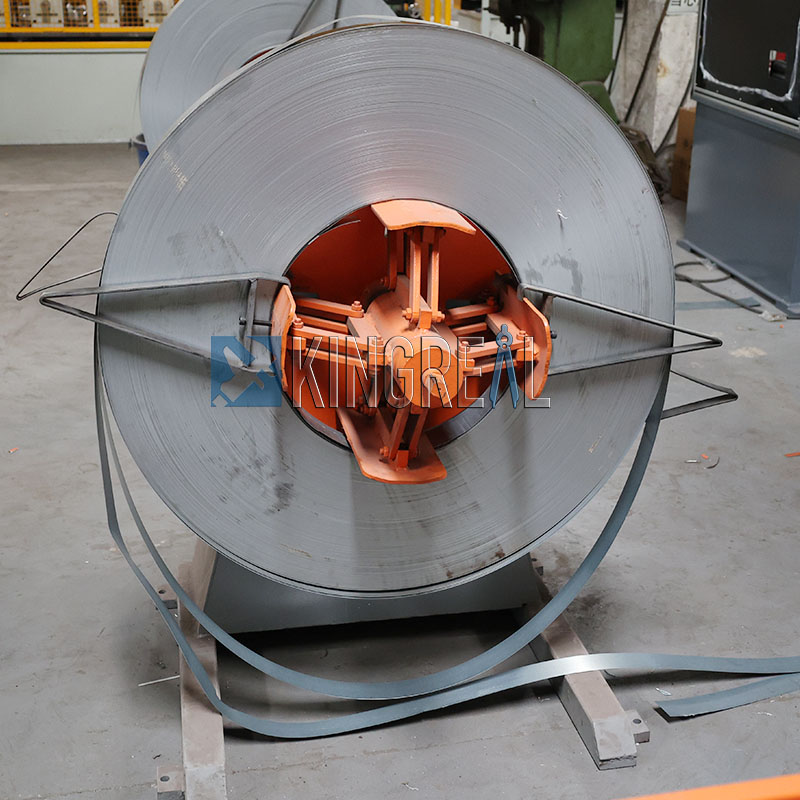

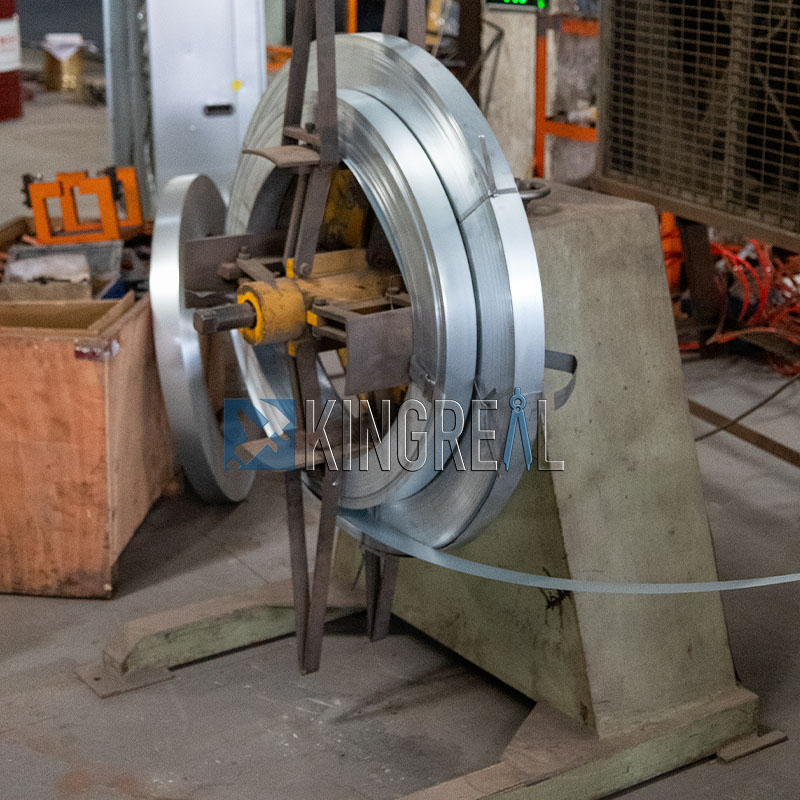

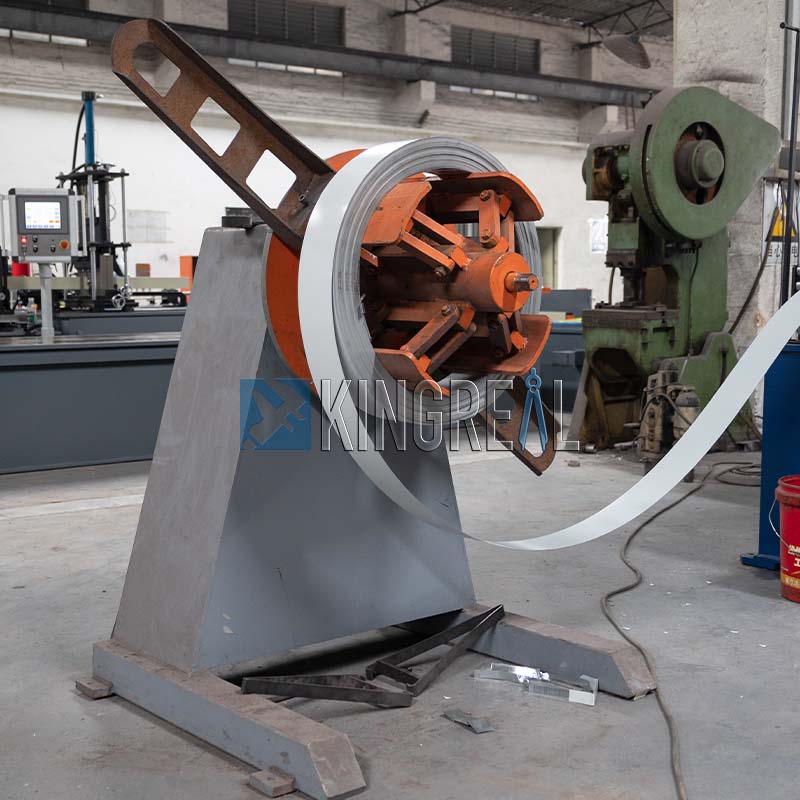

Description Of 1300 Steel Uncoiler Heavy Duty Hydraulic Decoiler
KINGREAL 1300 Steel Uncoiler Heavy Duty Hydraulic Decoiler is the equipment used to retrieve or release the rolled material when the metal or non-metal rolled material is cold processed, which including:
1.Coil Perforated Production Line
2.Coil Slitting Machine
3.Metal Cut To Length Line
4.Laser Cutting Production Line
and other equipment front-end discharge equipment.
Hydraulic decoiler is composed of frame, spindle, up and down reel, brake device and so on. In order to facilitate the actual use as well as long and stable work will also increase the loading trolley, pressure material arm, the material arc, support the device.
Technical Specification Of KINGREAL Hydraulic Decoiler
|
Model |
TC-300 |
TC-400 |
TC-500 |
TC-600 |
TC-700 |
TC-800 |
TC-1000 |
TC-1300 |
|
Stock Width(mm) |
300 |
400 |
500 |
600 |
700 |
800 |
1000 |
1300 |
|
Stock Thickness(mm) |
2 |
|||||||
|
Max Coil Weight(kg) |
500-1000 |
1000-2000 |
2000-3000 |
5000 |
8000 |
|||
|
Coil. O.D.(mm) |
1200 |
|||||||
|
Coil. I.D.(mm) |
450-530 |
|||||||
|
Motor Model(kw) |
0.75 |
0.75 |
1.5 |
2.2-3.0 |
||||
|
Main Input |
AC220/380V |
|||||||
Feature Of 1300 Steel Uncoiler Heavy Duty Hydraulic Decoiler
The main box of the material rack is welded with plates, all the bevels are inverted before welding, the welding of the frame is in accordance with the general standard, the weld seam is continuous and beautiful, flat, smooth, firm and without false welding.
The material rack spindle material is 40 chrome steel finishing, firm and durable to ensure the load capacity.
The material frame spindle rotary bearing is made of heavy-duty bearing.
The expansion and contraction barrel is designed with four blades, the overall curvature matches with the inner diameter of the material, which will not damage the material in the process of use.
The tile plate is made of high quality steel plate, and the surface is treated with a full set of metal surface coating process such as pickling, phosphating and spraying, which increases the antirust and corrosion resistance by 5 times.
Application Of Hydraulic Decoiler
Hydraulic uncoiler is mainly used in the process of uncoiling, coiling and shearing of coiled materials (such as steel coils, aluminum coils, copper coils, stainless steel coils, etc.). Hydraulic uncoiler is widely used in steel, metallurgy, non-ferrous metal, construction, machinery, automobile, electronics, light industry and other industries.
FAQ:
There are 2 ways: either by plane or by train to Foshan/Guangzhou port. We will be picking you up in plane/train station, then we can go together.
12 months except human error, during which all parts damaged because of quality problem will be changed for free.
Parts that are out of warranty will be provided in factory price.
40% deposit is paid before production, the balance paid after inspection confirmation before shipment.
If buyers come to our factory to inspect, the training to install and operate is provided face to face.
If not, Manual book and video is provided to show how to install and operate.
Yes we can, we use iron wire for fixing machines in container, also small wood pads to hold machines tight and don't move around during shipment.
