KINGREAL STEEL SLITTER is a professional manufacturer and supplier of metal coil slitting machine equipment in China, which is able to customize the design of steel slitting machine drawings and manufacturing coil slitting machine solutions according to the needs of customers, and is committed to providing customers with the optimal solution to establish a long-term and stable relationship. |
Coil Slitting Machine is a kind of high-efficiency equipment specially designed for cutting wide metal coils longitudinally into a number of narrow strips, which can be used to process steel, aluminum, stainless steel, copper and other metals for longitudinal shearing, and is suitable for coils with different thicknesses according to customer's production needs, for slitting and final winding.

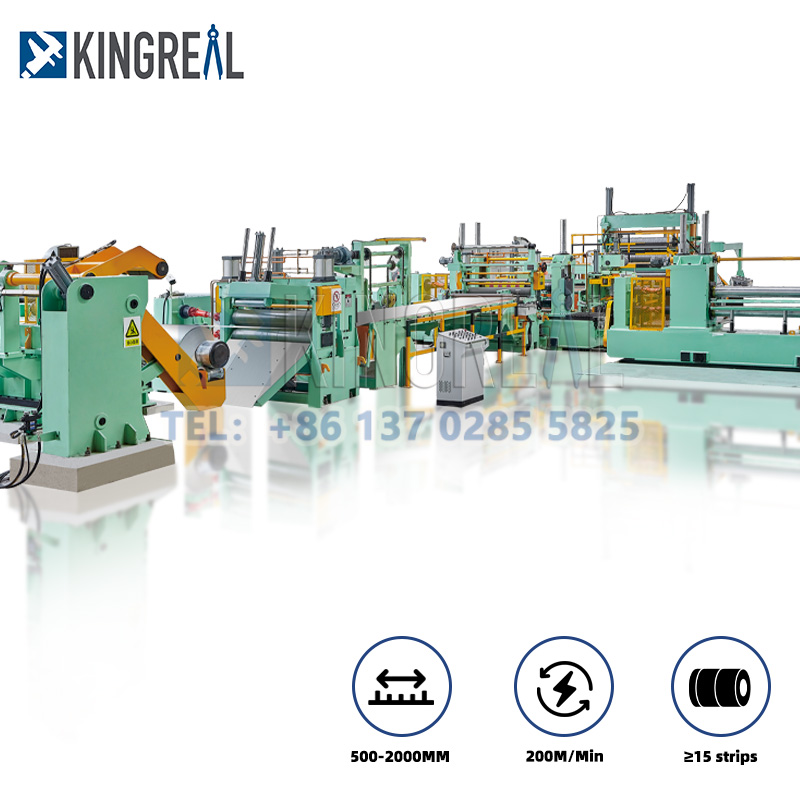

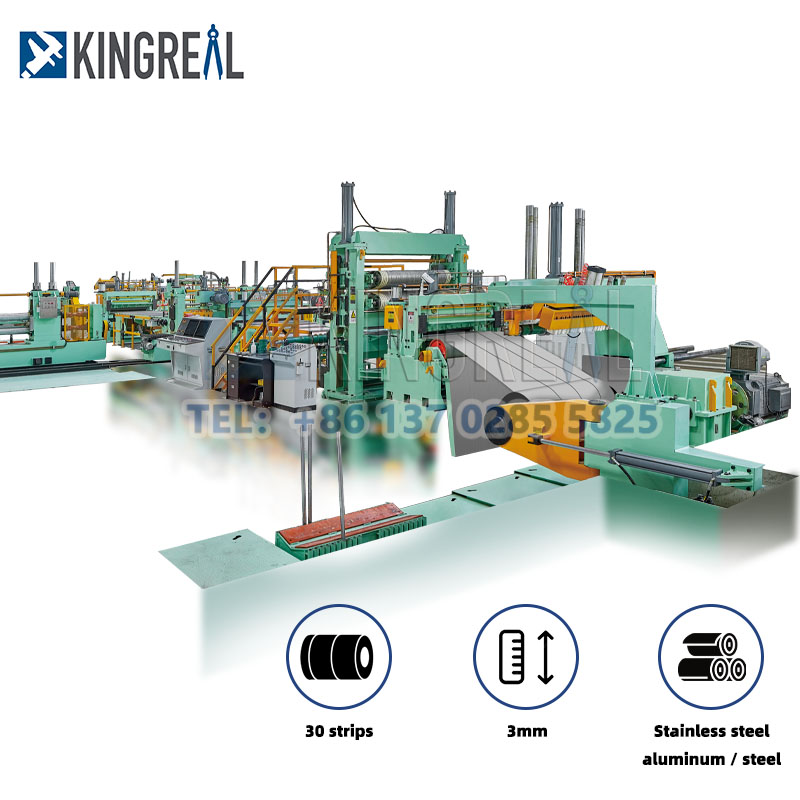

KINGREAL STEEL SLITTER popular longitudinal cut to length line and slitting machine Products include double slitter head coil slitting machine, full auto slitting machine, metal sheet slitting machine, stainless steel slitting machine, coil slitting machine with belt tension, heavy gauge coil slitting machine and so on.
|

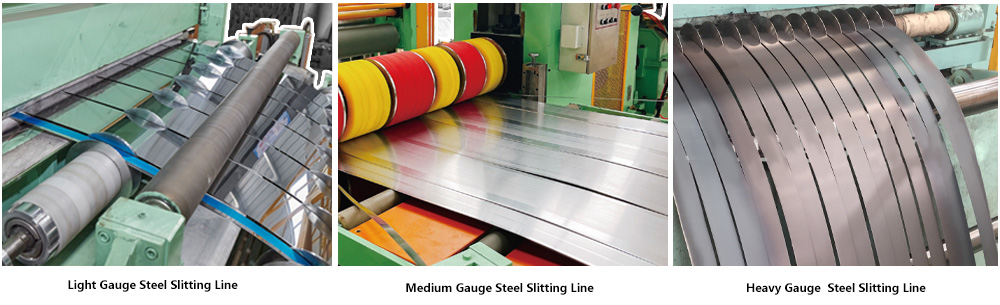

Light Weight Coil Slitting Machine -Coil Thickness: 0.3-3MM- |
Medium Gauge Coil Slitting Machine -Coil Thickness: 3-6MM- |

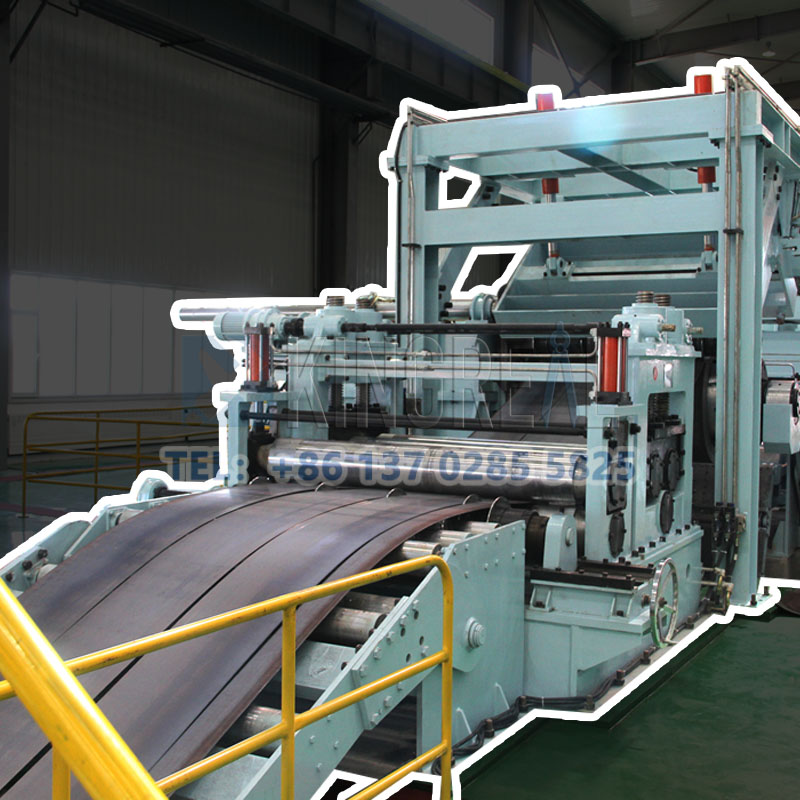

Heavy Gauge Coil Slitting Line -Coil Thickness : 6-12MM- |
Mechanical structure design
1.Unwinding mechanism: The unwinding mechanism is used to unwind and support the coil, usually equipped with a rise and fall shaft, a brake device and an automatic centering device to ensure smooth unwinding and centering of the coil.
2.Slitting mechanism: The shearing mechanism is the core part of the slitting machine, which adopts high-precision knife shaft and shearing tool for cutting. The knife shaft is supported by precision bearings to ensure smooth operation and precise cutting.
3.Guiding and Tension Control System: The guiding device ensures the stable running of the strip during the shearing process, and the tension control system maintains the proper tension of the strip by means of tension sensors and feedback control.
Power Transmission Design
1. Servo motor and frequency converter: Servo motor and frequency converter are used to drive the knife shaft and rewinding shaft to ensure precise control of cutting speed and tension. The servo system is characterized by fast response and high precision control.
2. Coupling and reducer: The power is transferred to the knife shaft and winding shaft through the coupling and reducer to ensure the smoothness and reliability of the transmission system.

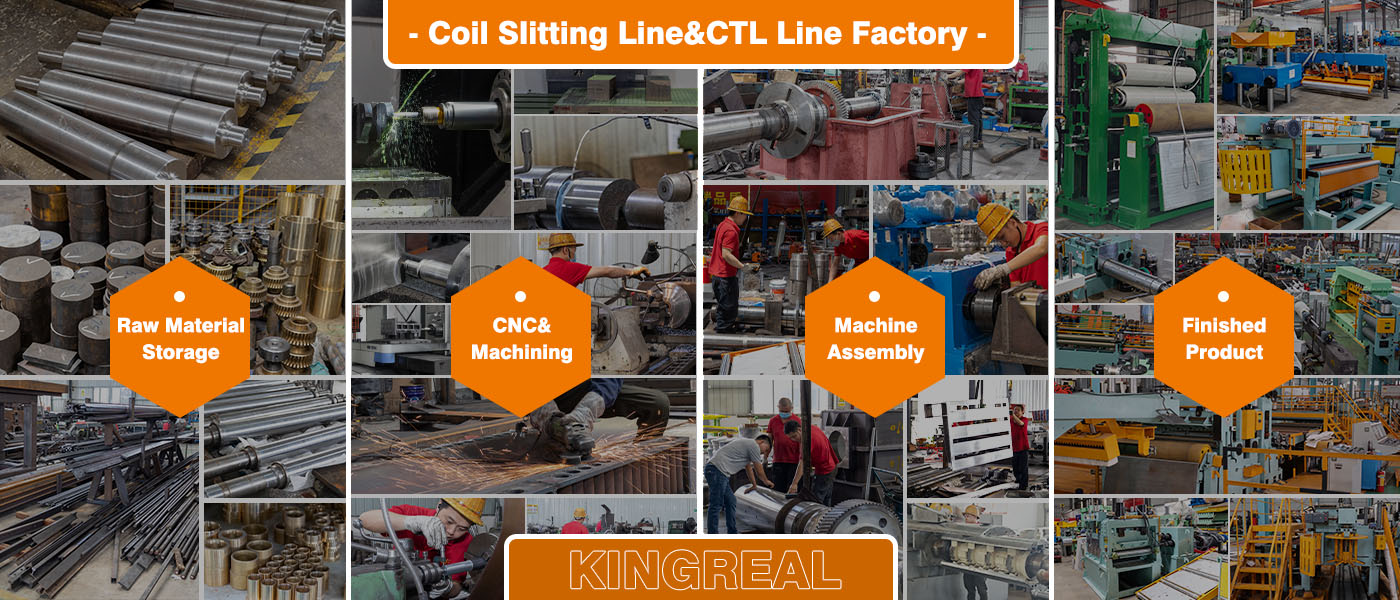

1. Processing technology
Precision machining: adopt high-precision machining equipment and processes, such as CNC machine tools, grinding machines, etc., to ensure the machining precision of each component of the metal slitting machine.

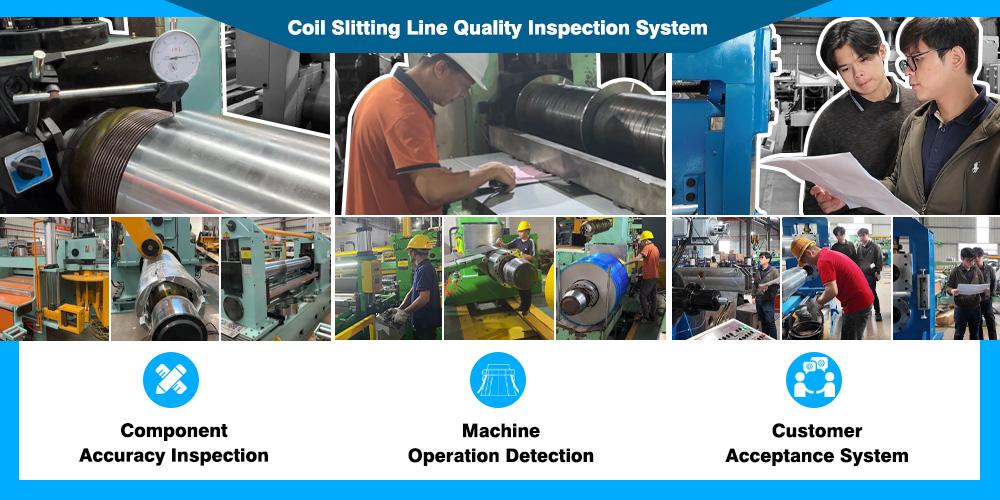

2. Quality control
Strict inspection standards: establish strict quality inspection standards, conduct comprehensive inspection on raw materials, processing and finished products to ensure that each index of the slitting machine meets the design requirements.
3. Installation and commissioning

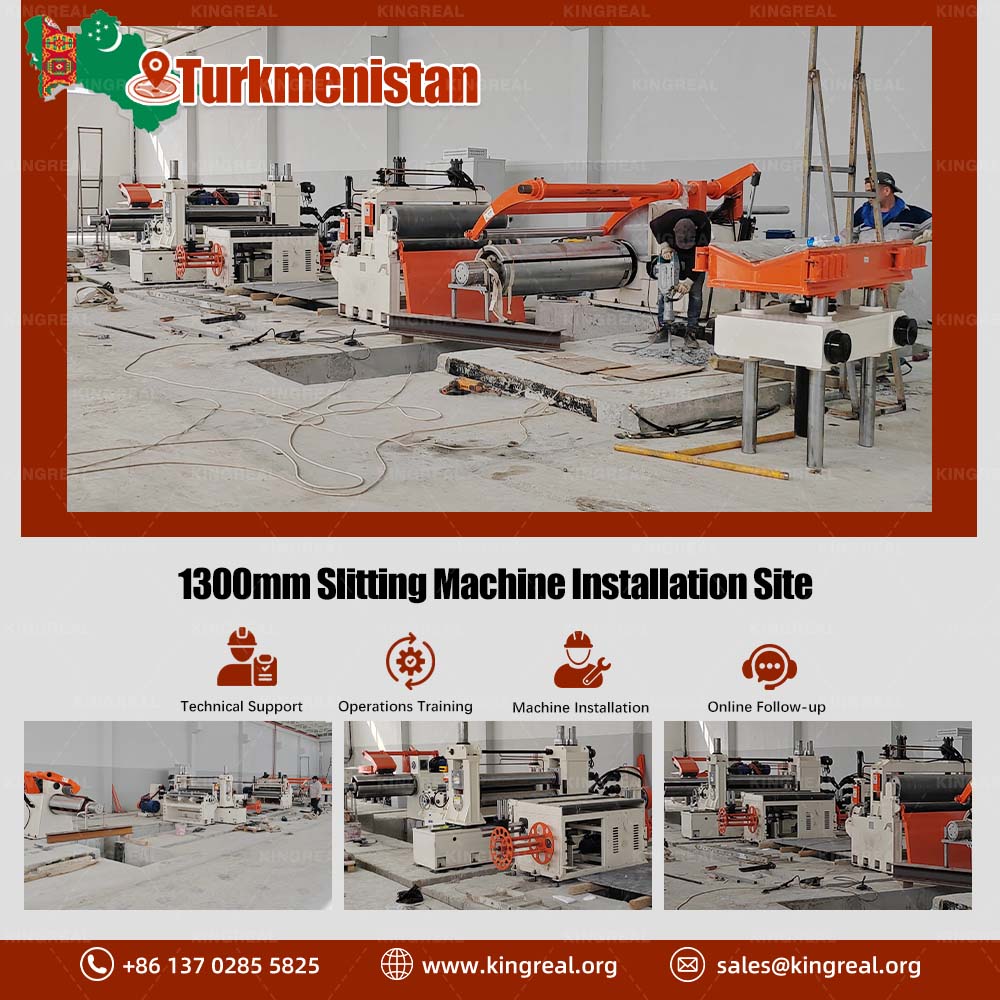

Professional installation team: equipment installation is carried out by experienced installation team to ensure the correct installation and debugging of the equipment.
System debugging: system debugging of the whole machine, including mechanical parts, transmission parts and control system, to ensure that the performance of the equipment meets the design requirements.

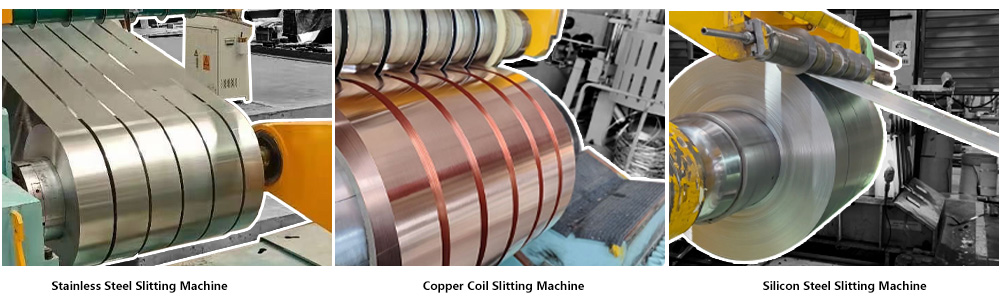

KINGREAL MACHINERY is stainless steel coil slitting machine professional manufacturer and supplier, which offer full solutions in coil processing production line, such as stainless steel slitting machine. We can provide the slitting machine for different materials. Since 1995, we have reached cooperation with customers all over the world.

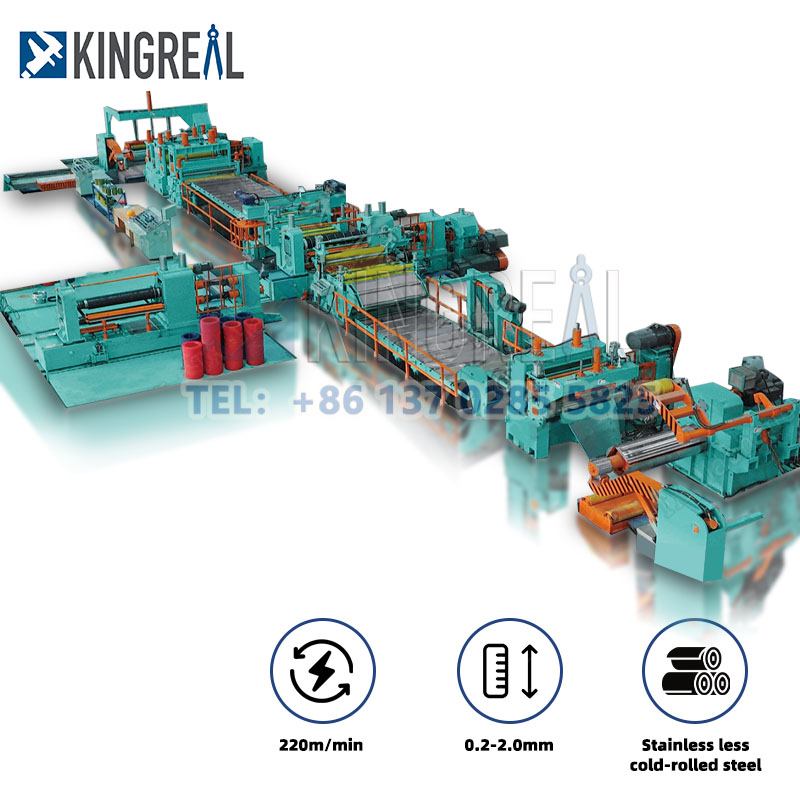

KINGREAL STEEL SLITTER can manufacturing the steel coil slitting line according to the customer need, the steel coil slitting machine can slit the coil to the special width and then rewinding to the slit coil. Metal steel slitter machine can meet the processing needs of different materials and thickness of coils with high precision and high speed production characteristics.
KINGREAL STEEL SLITTER is one of the Metal Coil Slitting Machine and cut to length line supplier in China. We have a professional team and rich project experience, can provide you with the high qulity metal coil slitting machine solution and the best service, welcome to contact us.

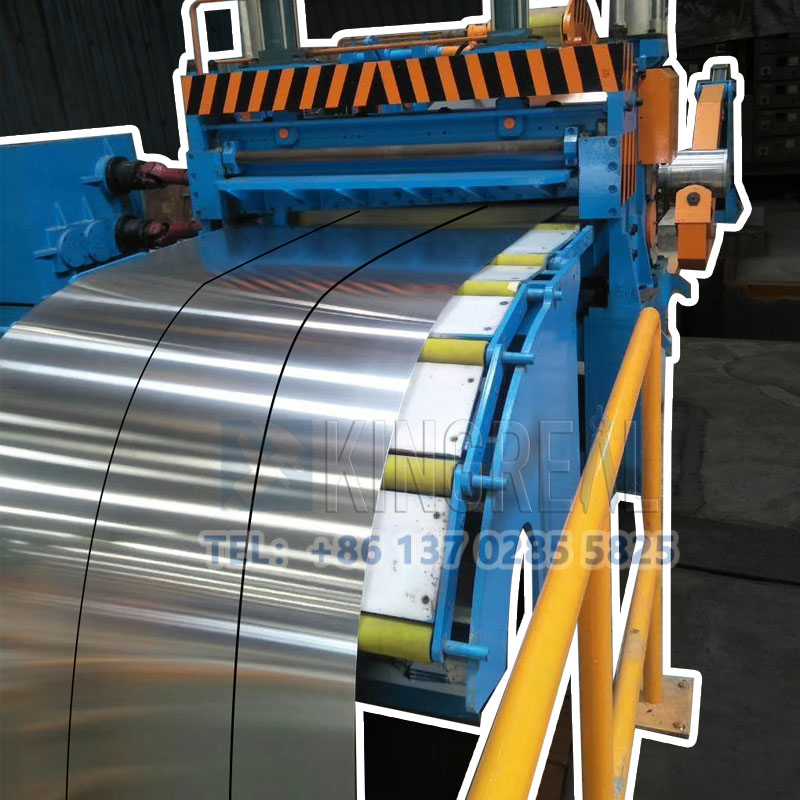

KINGREAL MACHINERY is a professional Aluminium Coil Slitting Machine manufacturer and supplier in China. KINGREAL has more than 20 years of production experience, our machines focus on automation and high efficiency. Looking forward to reaching agreements with customers from all over the world.

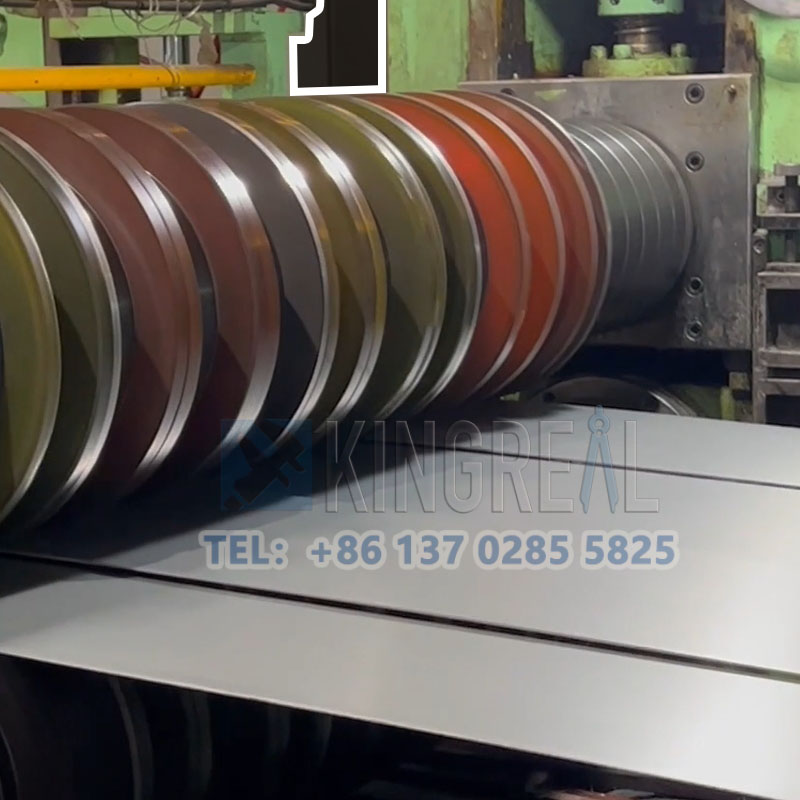

KINGREAL provide silicon steel coil slitting machine, which can cuts rolls of silicon steel coil into certain width and then rewinding. KINGREAL STEEL SLITTER is a professional manufacturer and supplier of coil slitting machine and cut to length line in China. We sincerely hope to reach long-term cooperation with customers all over the world.
As a professional manufacturer, KINGREAL STEEL SLITTER has more than 20 years of experience in the field of slitting machines. KINGREAL can provide the galvanized steel slitting machine, which is design for precise slitting and rewinding of rolls to specified widths. KINGREAL can ensure the high quality of our machines and is recognized by customers from all over the world. welcome to contact us！
