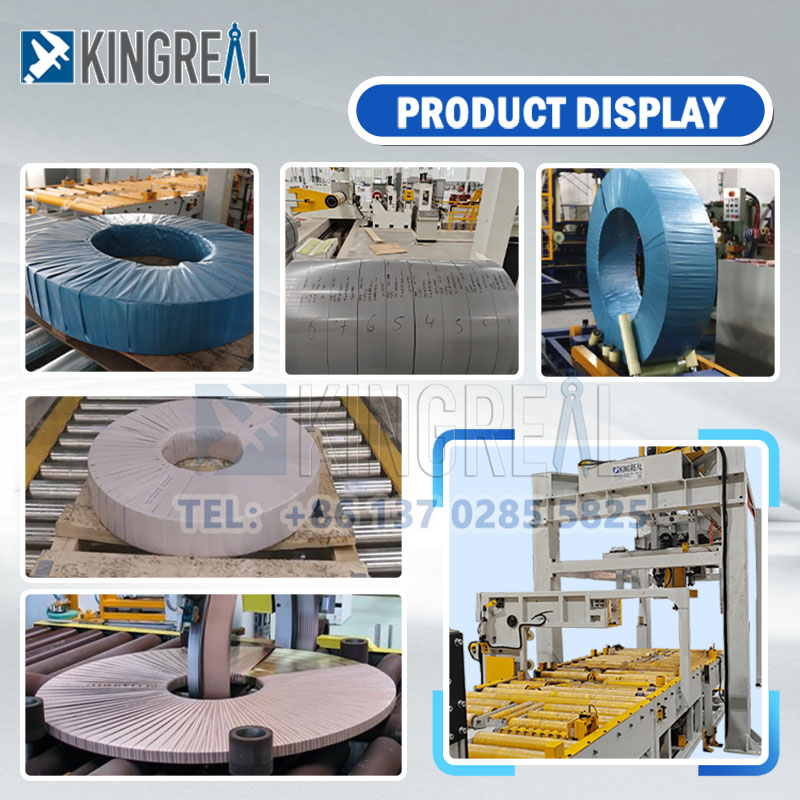

Solving metal coil baling problems for customers in the coil processing industry. The KINGREAL Automatic Steel Coil Package Line is designed for fully automated coil transport, wrapping and stacking processes. Individual coil weights of up to 15 tons can be handled.
In the metal coil processing industry, many customers in the coil processing industry are looking for solutions due to the weight and characteristic factors of metal coils themselves, which can make factories face difficulties in transportation and packing, including the safety of transportation and the consumption of labor costs. Therefore, KINGREAL has designed and manufactured fully automated coil packaging lines in order to provide efficiency and full automation in coil processing lines. The coil packaging production line is operated by touch screen, realizing a fully intelligent operation system and improving the production efficiency of the line.

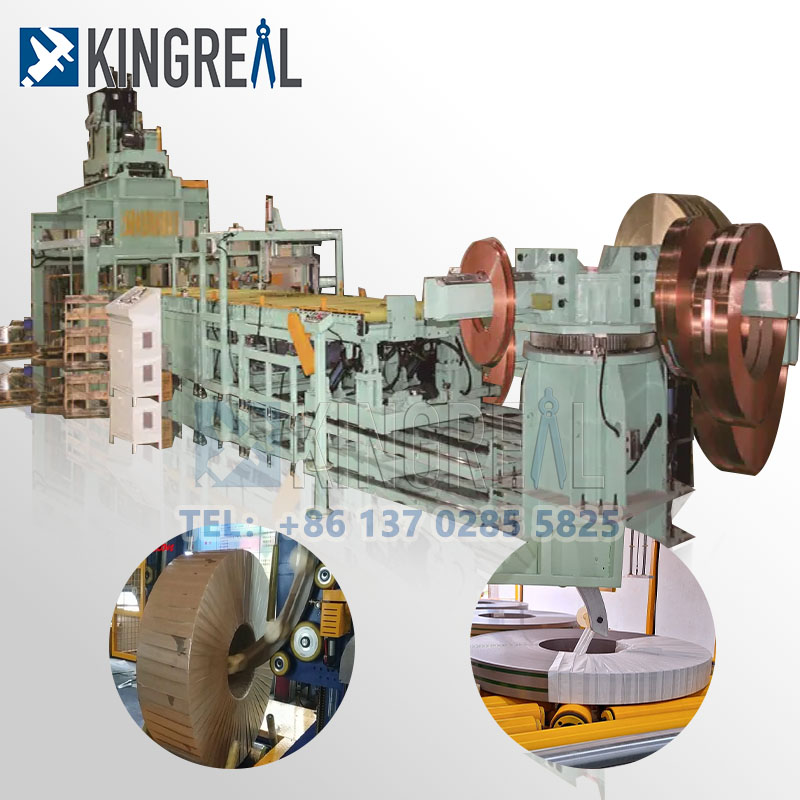

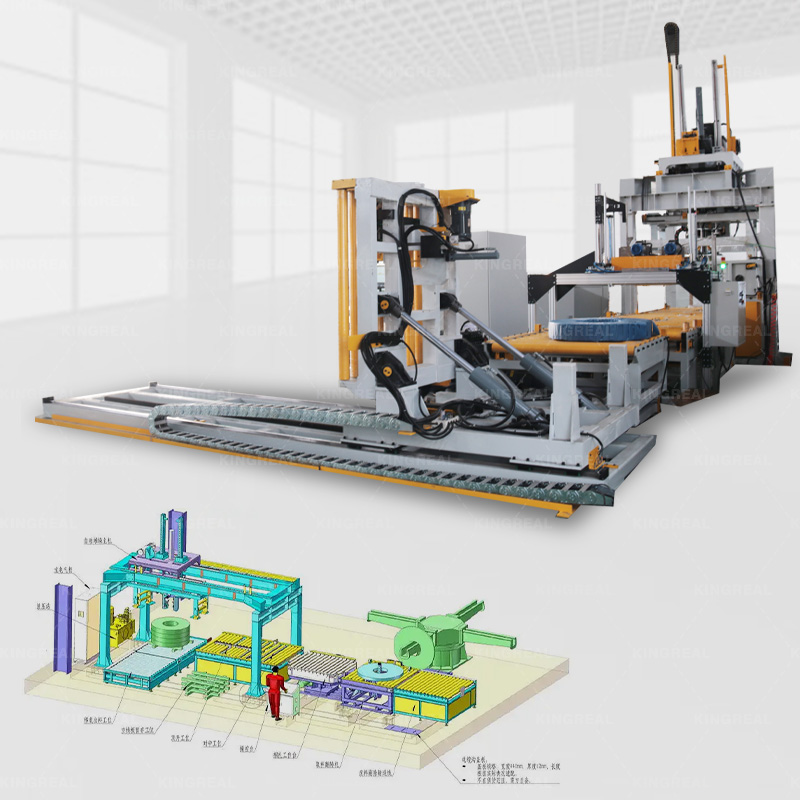

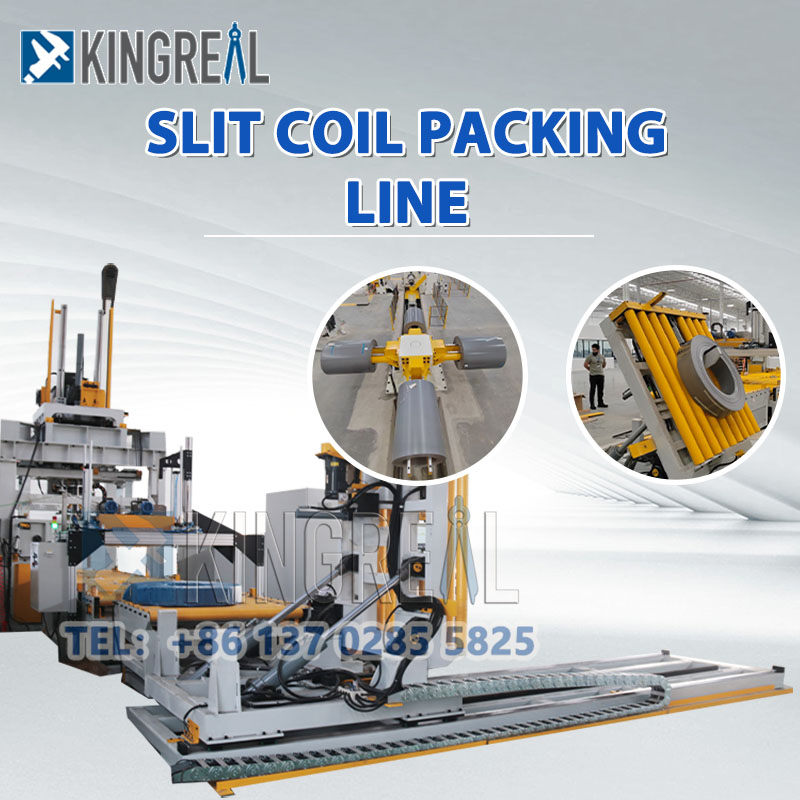

KINGREAL web packing line is an integrated system of web handler, web carriage, web packer, strapping machine and web stack to automate the process from slitting web production line to packing storage. It meets the production requirements for automated packing and transporting of coils of different sizes and weights, and supports a high degree of customization, offering a wide range of additional functions such as labeling, weighing, and information scanning, in order to meet the processing and production characteristics of different factories.

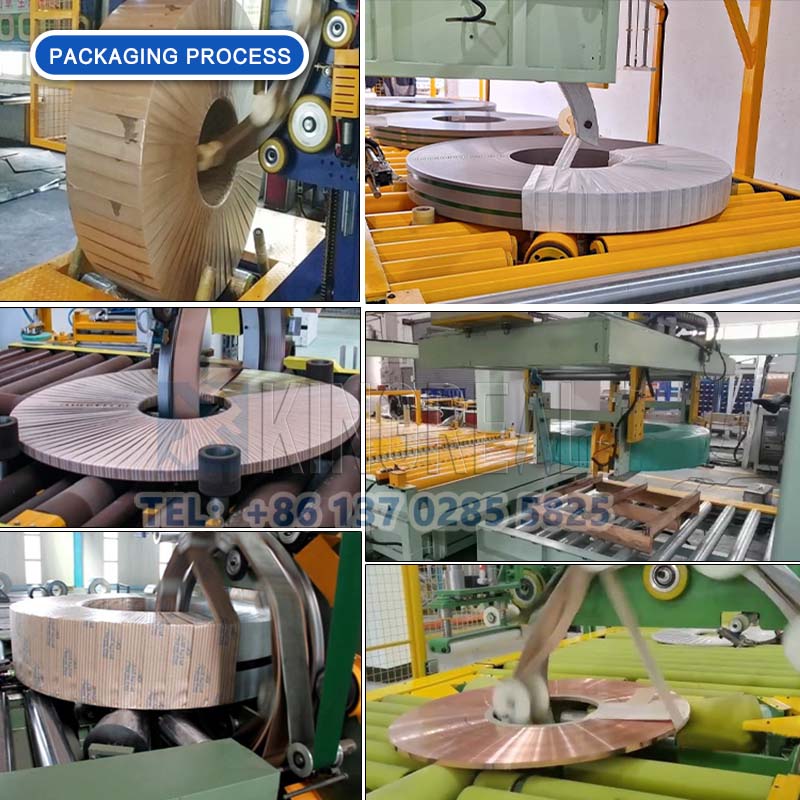

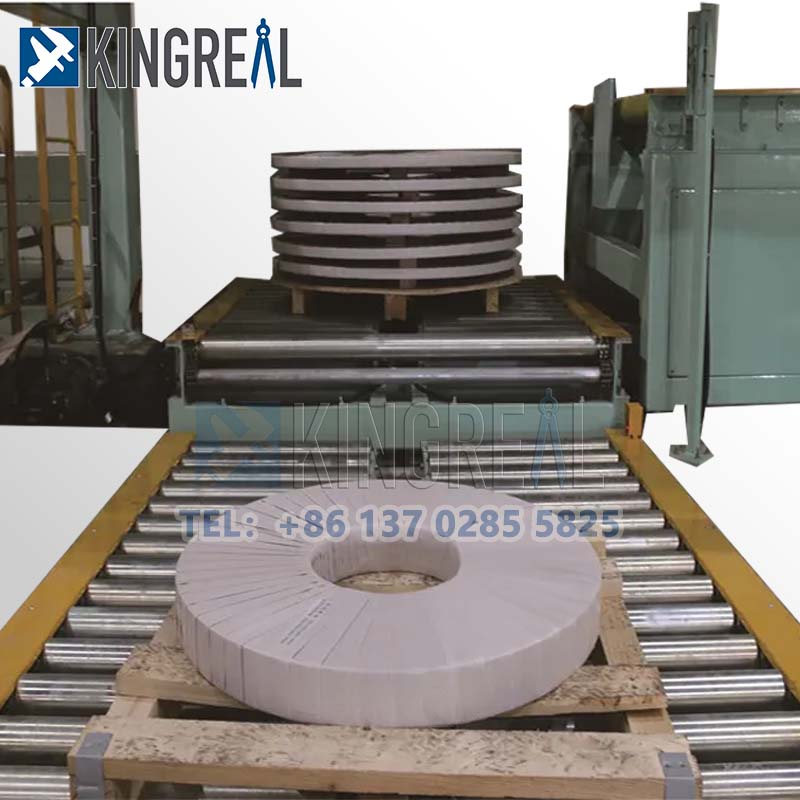

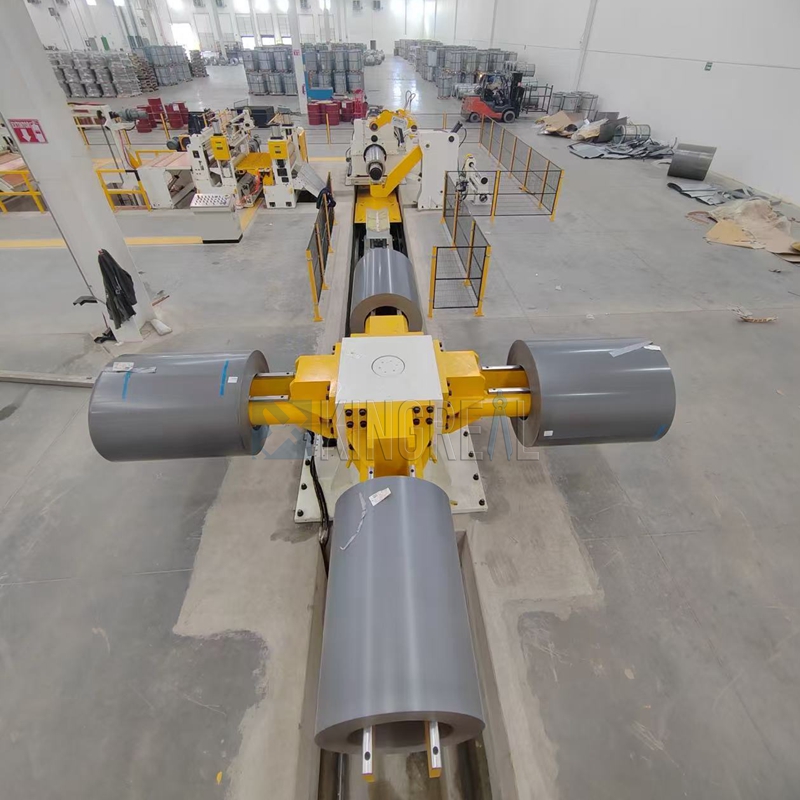

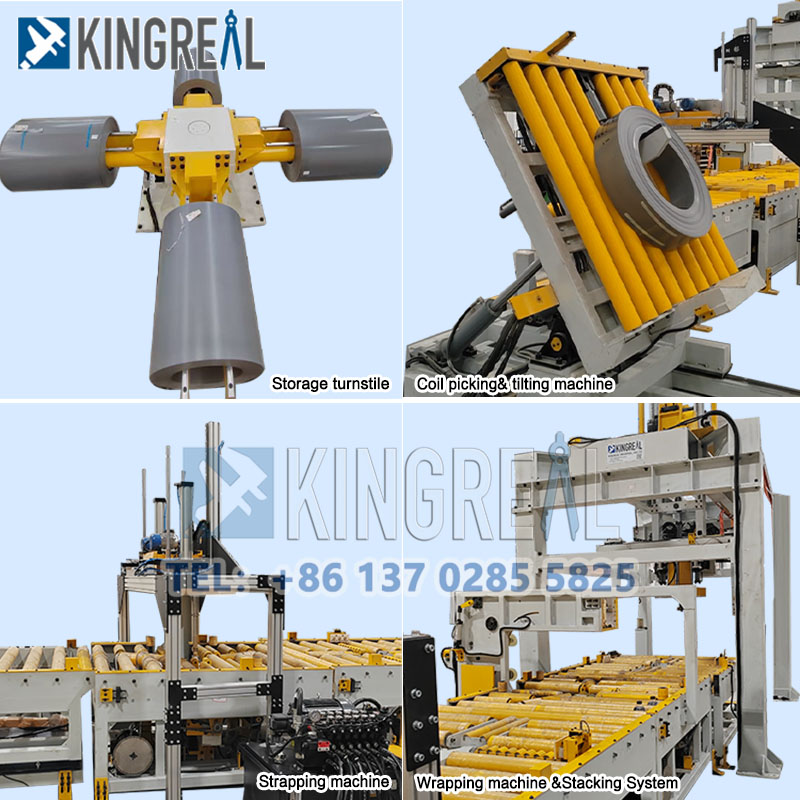

Coil Pick Up From Turnstile -- Coil Down Ender -- Coil Strapping Machine -- Automatic Labeling -- Coil Wrapping Machine -- Coil Centering station -- Coil Stacking Machine
|
Coil OD |
800-1500MM |
|
Coil ID |
500-600MM |
|
Coil Width |
50MM-400MM |
|
Coil Weight |
15Ton |
|
Package Material |
LLDPF Stretch Film、Compound Paper |
|
Wrapping Overlap |
20%-70% |
Coil Strapping MachineWrap-around packaging equipment is often equipped with an adjustable tension control system to ensure that the proper tension is maintained in the packaging material during the wrapping process. This is essential to ensure that the packaging material wraps tightly around the web and avoids loosening or over-tightening, thus ensuring the quality of the package. For added protection, wrap-around packaging equipment is often equipped with multi-layer winding capabilities, allowing for multiple layers of wrapping as needed. Multi-layer wrapping adds strength to the package and is particularly suitable for coils that need to be transported over long distances or stored for long periods of time.
Coil Centering stationDuring the packaging process, metal coils must be accurately positioned so that the strapping or packaging material wraps evenly and securely around the coil. Centering devices help to accurately center the coil on the conveyor line, avoiding uneven or weak wrapping caused by coil deflection. When the web is not centered, it can cause asymmetrical loading of the equipment and increased wear and tear on mechanical parts such as conveyor belts and rollers. In the long run, this can shorten equipment life and increase maintenance costs. Centering devices can reduce this asymmetrical load and extend the life of the equipment.
|
 |
 |
1. Protecting metal coil: metal coil is easily damaged during production, transportation and storage, such as scratches, moisture, dust, etc.. Packing line can provide effective protection for the coil and reduce the impact of external factors on its quality. 2. Improve efficiency: automated packaging line can greatly improve the speed and efficiency of packaging. Compared with manual packaging, automated packaging line can more quickly complete the packaging task, and to ensure the consistency of packaging quality. Reduce the dependence on manual labor, reduce labor costs, while reducing packaging problems caused by human error. 3. Improve safety: metal coil is large in size and heavy in weight, and there is a high safety risk in manual operation. Automated packaging line can reduce manual handling through robotic arms and conveyor devices to reduce the risk of work-related injuries. 4. Adapt to large-scale production: for enterprises that need to mass produce and package metal coil, automated packaging line is a necessary tool to realize large-scale production and packaging, to meet the demand for large quantities and fast delivery. |

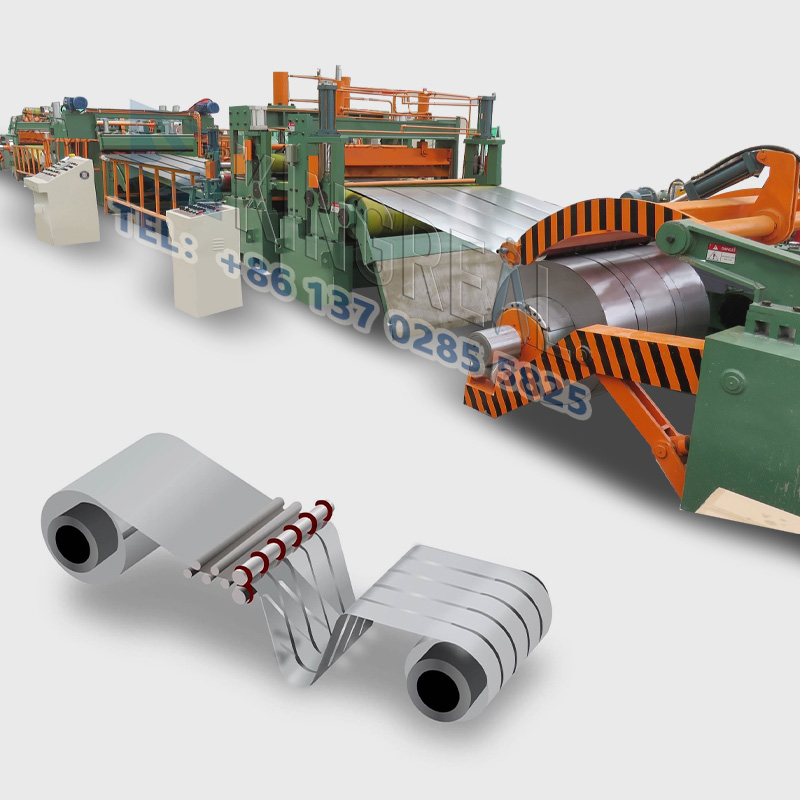

Metal slitter production line is one of the most common machines in coil processing equipment, capable of slitting and winding metal coils of different materials in the process, using precision forged blades and other equipment to ensure the accuracy of the slitting. The metal slitting rolls produced can be used in many industries such as automobile manufacturing and metal processing.
In order to realize fully automated coil processing, KINGREAL is equipped with an automatic coil packing line, which realizes fully automated production of metal coils from uncoiling, slitting, winding, unloading to coil packing and stacking.
