KINGREAL STEEL SLITTER is a professional manufacturer and supplier of metal coil slitting machine equipment in China, which is able to customize the design of steel slitting machine drawings and manufacturing coil slitting machine solutions according to the needs of customers, and is committed to providing customers with the optimal solution to establish a long-term and stable relationship. |
Coil Slitting Machine is a kind of high-efficiency equipment specially designed for cutting wide metal coils longitudinally into a number of narrow strips, which can be used to process steel, aluminum, stainless steel, copper and other metals for longitudinal shearing, and is suitable for coils with different thicknesses according to customer's production needs, for slitting and final winding.

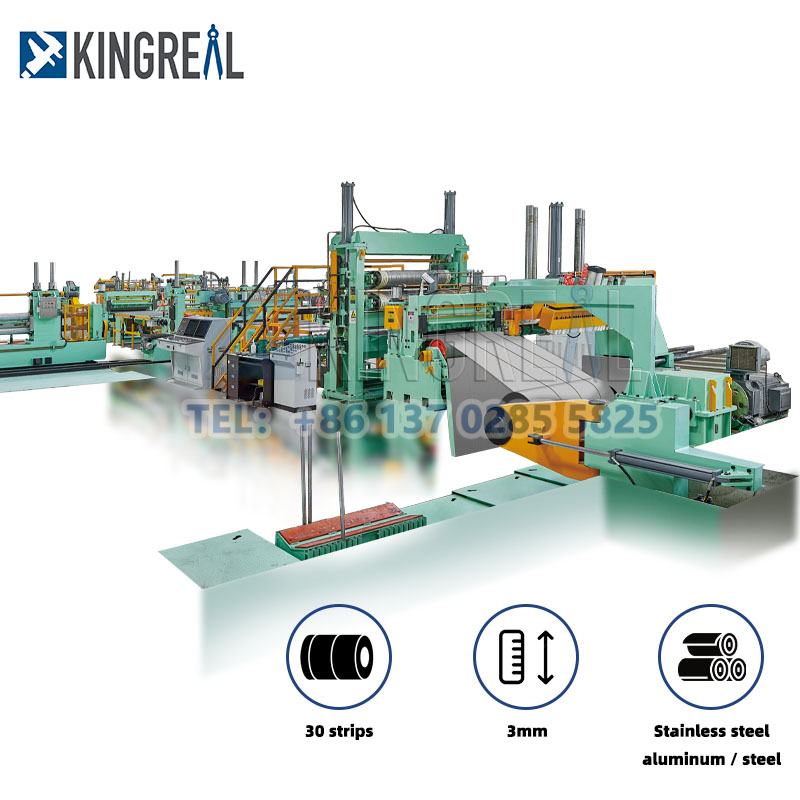

KINGREAL STEEL SLITTER popular longitudinal cut to length line and slitting machine Products include double slitter head coil slitting machine, full auto slitting machine, metal sheet slitting machine, stainless steel slitting machine, coil slitting machine with belt tension, heavy gauge coil slitting machine and so on.
|
Light Weight Coil Slitting Machine -Coil Thickness: 0.3-3MM- |
Medium Gauge Coil Slitting Machine -Coil Thickness: 3-6MM- |
Heavy Gauge Coil Slitting Line -Coil Thickness : 6-12MM- |
Mechanical structure design
1.Unwinding mechanism: The unwinding mechanism is used to unwind and support the coil, usually equipped with a rise and fall shaft, a brake device and an automatic centering device to ensure smooth unwinding and centering of the coil.
2.Slitting mechanism: The shearing mechanism is the core part of the slitting machine, which adopts high-precision knife shaft and shearing tool for cutting. The knife shaft is supported by precision bearings to ensure smooth operation and precise cutting.
3.Guiding and Tension Control System: The guiding device ensures the stable running of the strip during the shearing process, and the tension control system maintains the proper tension of the strip by means of tension sensors and feedback control.
Power Transmission Design
1. Servo motor and frequency converter: Servo motor and frequency converter are used to drive the knife shaft and rewinding shaft to ensure precise control of cutting speed and tension. The servo system is characterized by fast response and high precision control.
2. Coupling and reducer: The power is transferred to the knife shaft and winding shaft through the coupling and reducer to ensure the smoothness and reliability of the transmission system.
1. Processing technology
Precision machining: adopt high-precision machining equipment and processes, such as CNC machine tools, grinding machines, etc., to ensure the machining precision of each component of the metal slitting machine.
2. Quality control
Strict inspection standards: establish strict quality inspection standards, conduct comprehensive inspection on raw materials, processing and finished products to ensure that each index of the slitting machine meets the design requirements.
3. Installation and commissioning
Professional installation team: equipment installation is carried out by experienced installation team to ensure the correct installation and debugging of the equipment.
System debugging: system debugging of the whole machine, including mechanical parts, transmission parts and control system, to ensure that the performance of the equipment meets the design requirements.

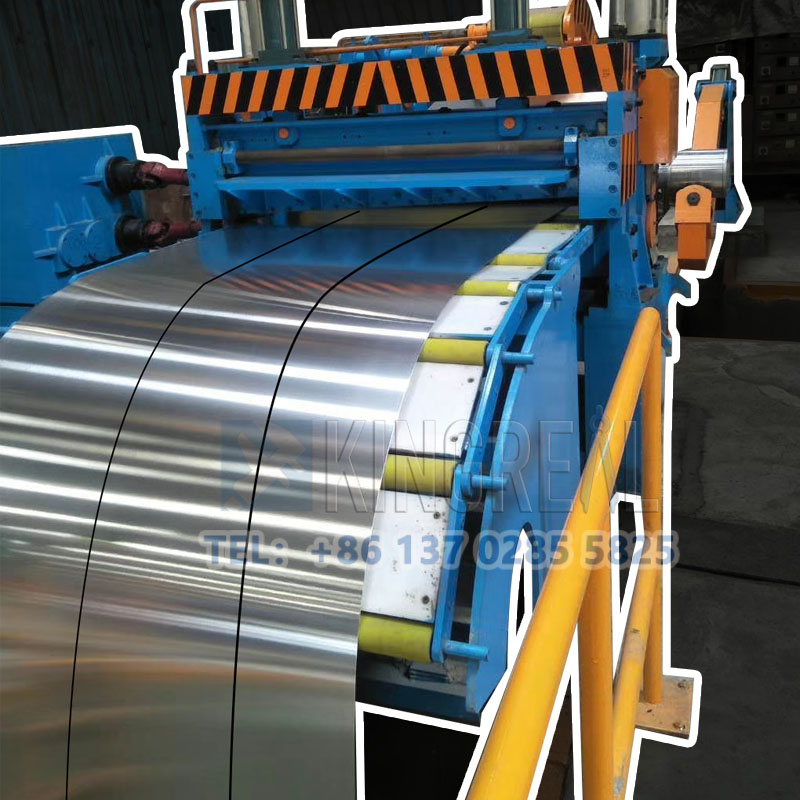

KINGREAL MACHINERY is one of the most professional coil process equipment manufacturer and supplier in China. KINGREAL can provide copper coil slitting machine, which can precise slitting the copper coil to the same width. Welcome to ask for a quotation.

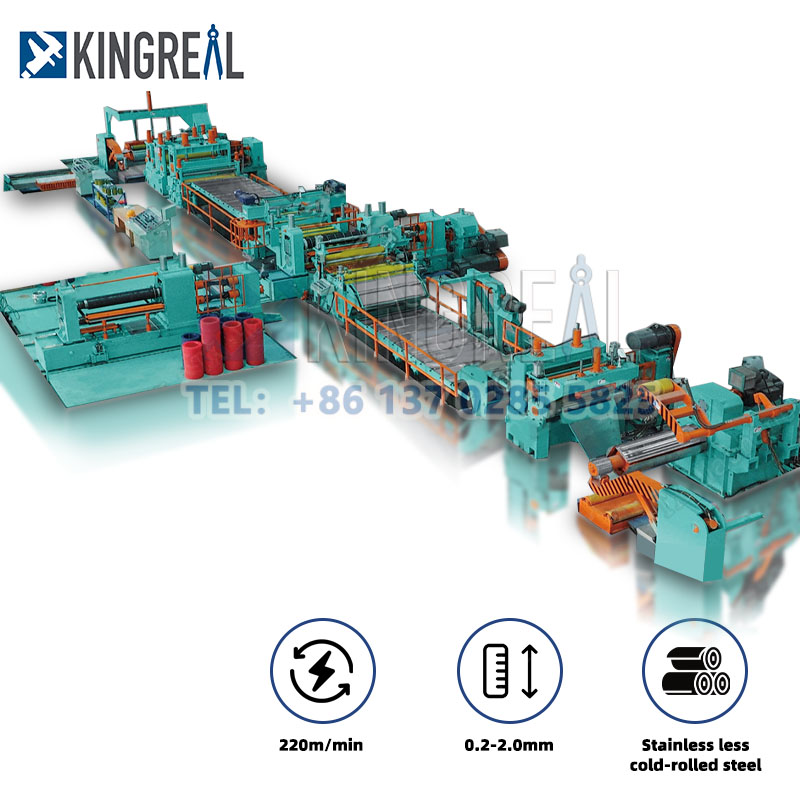

High Precision Speed Steel Coil Slitting Machine is one of KINGREAL’s feature product. As one of the professional coil manufacturers in China, KINGREAL is committed to providing customers with high quality production equipment to help can improve production efficiency. We are looking forward to reaching long-term cooperation with our customers all over the world.

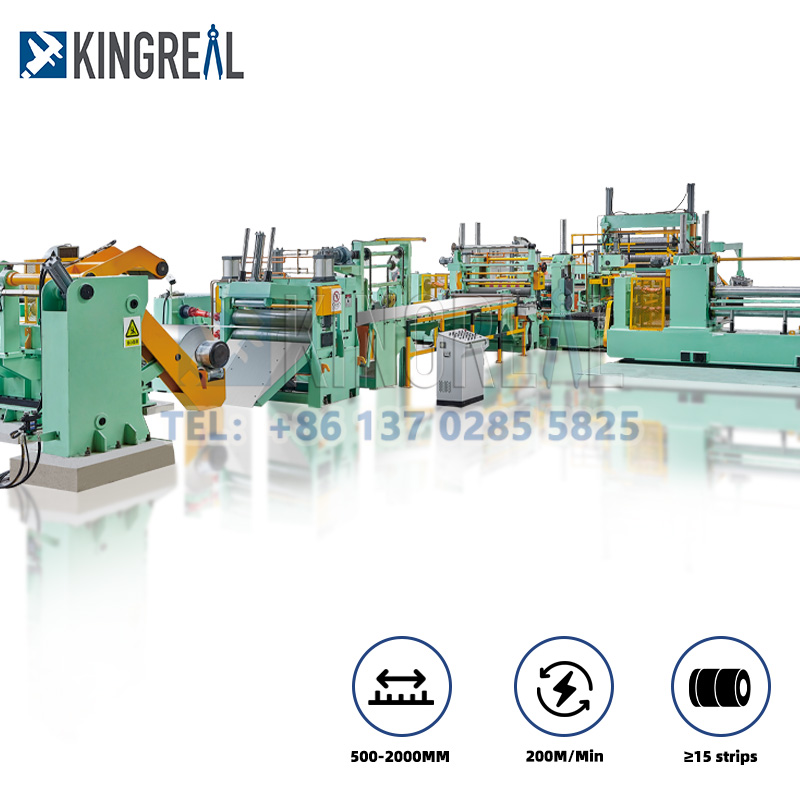

KINGREAL MACHINERY is a professional manufacturer and supplier of coil processing equipment in China, able to provide high quality automatic medium plate slitting machine. Our slitting machines are used for slitting a wide variety of materials with many user-friendly features incorporated using cutting-edge technology. Welcome to contact us.
KINGREAL is a professional manufacturer in the field of coil slitting machines in China, able to provide high quality narrow strip coil slitting machine.With more than 20 years of production experience, we can design and produce slitting machines according to the different needs of customers. Looking forward to reaching stable cooperation with customers from all over the world.
KINGREAL is a professional thin plate sheet slitting machine manufacturer and supplier in China. KINGREAL has been focusing on the field of slitting machines for more than 20 years, has rich production experience, has a professional technical team, and can design different coil slitting machines for customers. Welcome to contact us
KINGREAL can provide the high quality sheet metal coil slitting rewinder machine with CE certification. With more than 20 years of experience in manufacturing and sales, KINGREAL has professional engineers and a complete after-sales service system to provide different types of coil slitting machine. Welcome to contact us.
