Cut To Length Machine is mainly used in cut the original metal plate into precise size, which is used to make various industrial products. KINGREAL MACHINERY is one of the most professional coil processing manufacturers in China, able to provide Medium Gauge Cut To Length Machine of various specifications.
Video About Medium Gauge Cut To Length Machine
KINGREAL STEEL SLITTING Project Display

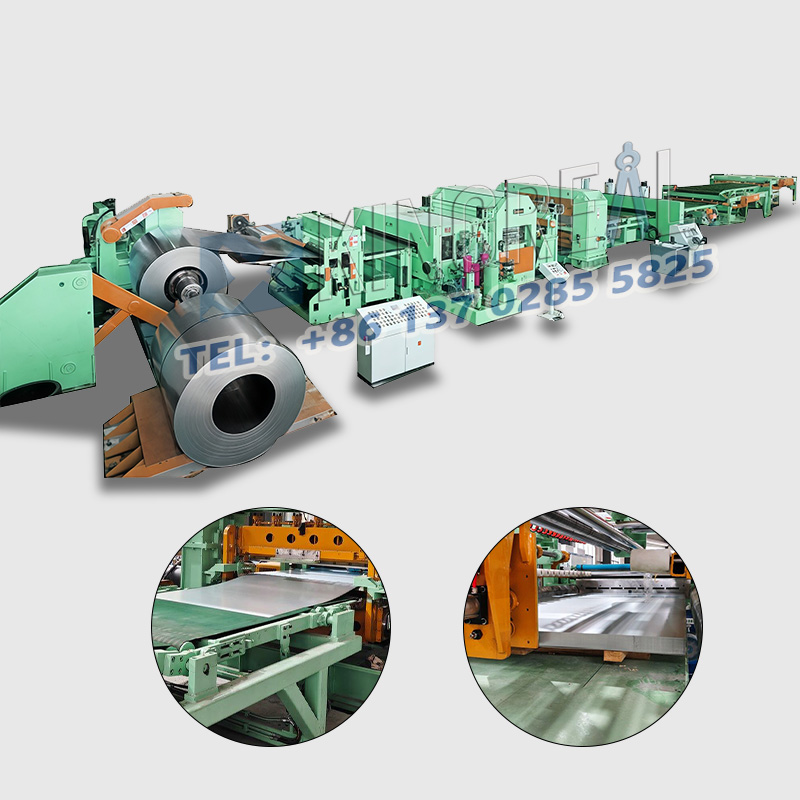

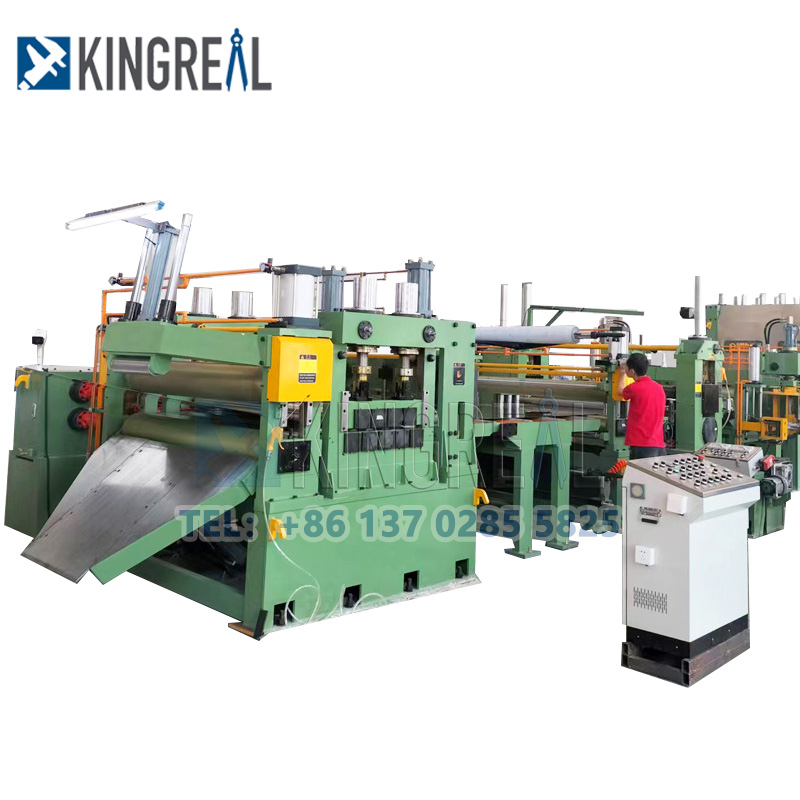

Description Of Medium Gauge Cut To Length Machine
The main function of the cut to length production line is to cut metal sheets of different materials, such as stainless steel, cold-rolled steel, hot-rolled steel, and aluminum coils, into precise sizes, which are used to manufacture various industrial products, such as automotive parts components and home appliances.
KINGREAL can provide a series of cut to length machine with different specifications according to the different production needs of customers, such as Medium Gauge Cut To Length Machine. This CTL Line is specially designed to cut coils from 8-16mm thick and from 1250mm to 2500mm width.
The production line uses high-precision CNC machine tools for processing, which can achieve the best processing accuracy and minimum processing time. At the same time, the production line can also realize automatic operation to achieve high-efficiency production.
Production Procedure Of Cut To Length Line
Hydraulic Decoiler -- Feeder Roll -- Straightener Machine -- Metering Machine -- High Speed Shearing Machine -- Conveyor -- Auto Stack
- Put the raw material (such as metal plate) into the CNC machine;
- Input relevant parameters according to requirements
- The PLC program starts processing;
- After finishing the processing, check whether the product meets the size requirements;
- Put the cutting board that meets the requirements into the stack;
- The stack packs the cutting board
Specification Of Medium Gauge Cut To Length Machine
|
Coil Material |
Aluminum, Stainless, Galvanized and so on |
|
Coil Thickness |
8-12mm |
|
Coil Width |
1250-2500mm |
|
Coil Weight |
≤15T |
|
Coil I.D |
508mm |
|
Production Line Speed |
0-50m/min |
|
Cutting Length |
300-6000 mm |
|
Length tolerance |
±0.3 mm |
|
Straightening tolerance |
±1 mm/m2 |
(All data are for reference only, the actual data needs to be designed and modified according to the different production needs of customers.)

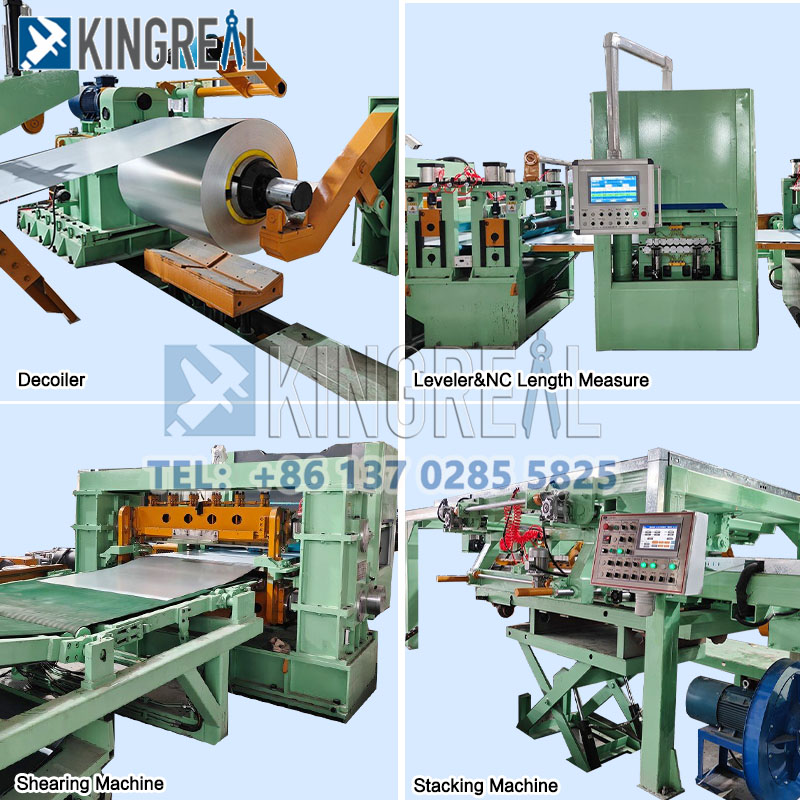

Display Of CTL Main Components
The hydraulic decoiler is specially used to unroll the raw material from a small diameter roll or sheet through a hydraulic system. It consists of hydraulic pumps, hydraulic cylinders, motors, drive shafts, control systems and other components.
A leveling machine is a machine used to precisely level raw materials, which is mainly composed of a frame, a motor, a drive shaft, a transmission system, a control system, and sensors. Among them, the sensor is used to detect the thickness of the raw material to ensure the accuracy of the leveling process. Leveling machines precisely level raw materials for an efficient production process.
Metal shearing machine is a machine used to cut metal materials, which is mainly composed of frame, motor, knife holder, knife handle, transmission system, lubrication system and control system and other components. Ensure the accuracy and precision of the cutting process. Metal shears can quickly and accurately cut metal materials, thereby increasing production efficiency.

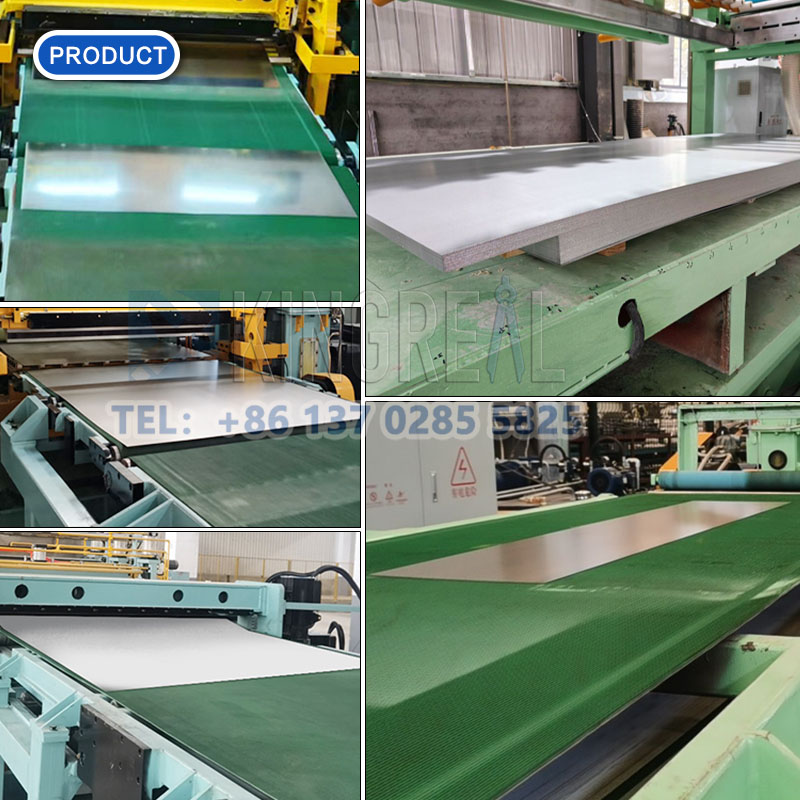

Application Of Cut To Length Machine
Metal cut-to-length shearing production line is mainly used in industries such as automobiles, ships, furniture, components, electrical appliances, household appliances, steel structures, reinforced concrete structures, etc. It can produce metal plates of various specifications to meet the needs of different industries.
FAQ
Yes, KINGREAL Machinery is a professional coil processing machines manufacturer and supplier.
We have been focusing on the field of machine manufacturing for more than 20 years.
Our factory is located in Foshan city, Guangdong Province. So there are two ways to our city.
One is by flight, direct to Foshan or Guangzhou Airport. Another is by train, direct to Foshan or Guangzhou station.
We will pick you up at the station or airport.
12 months, during which all parts damaged because of quality problem will be changed for free.
