KINGREAL MACHINERY is a professional manufacturer in the field of coil processing in China, and can provide high precision slitting machine, such as (0.3-4.0) X1650 mm High Precision Coil Slitting Machine. KINGREAL has rich experience in production and sales, can provide customers with different types of machines, welcome to contact us
Video About High Precision Coil Slitting Machine

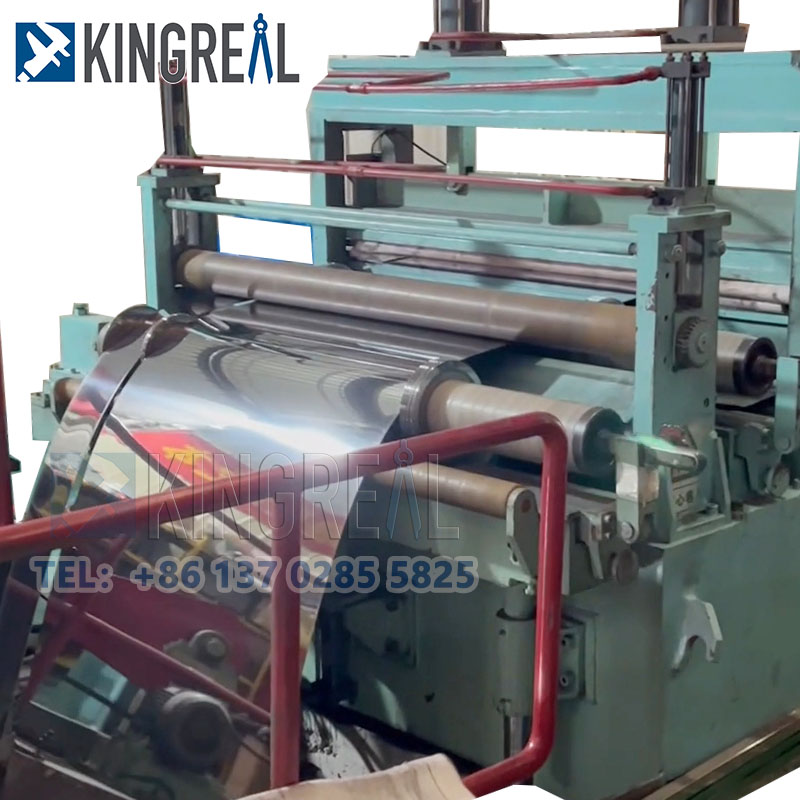

Brief Introduction Of (0.3-4.0) X1650 mm High Precision Coil Slitting Machine
(0.3-4.0)×1650 mm high precision coil slitting machine is one of our hot sale slitting machine, which is widely used in professional fields such as manufacturing transformers, motor manufacturing industry, pipe/tube welding factory industry, cold rolling mill, etc.
KINGREAL Coil Slitting Machine is designed to divide different materials such as cold-rolled steel coils, hot-rolled steel coils, galvanized steel coils, silicon steel coils, stainless steel coils, aluminum coils, etc. into specific widths according to customer production needs, and finally metal strips or coils Recoiling at the end of the slitter.
According to the different production needs of customers, KINGREAL can provide slitting machines with different features and different designs. According to the thickness of the material, it is divided into thin plate coil slitting machine, medium and thick plate slitting line and thick plate steel slitting machine; according to the production demand, it is divided into double knife slitting head slitting machine, narrow strip slitting machine and 220/min high-speed slitting machine.

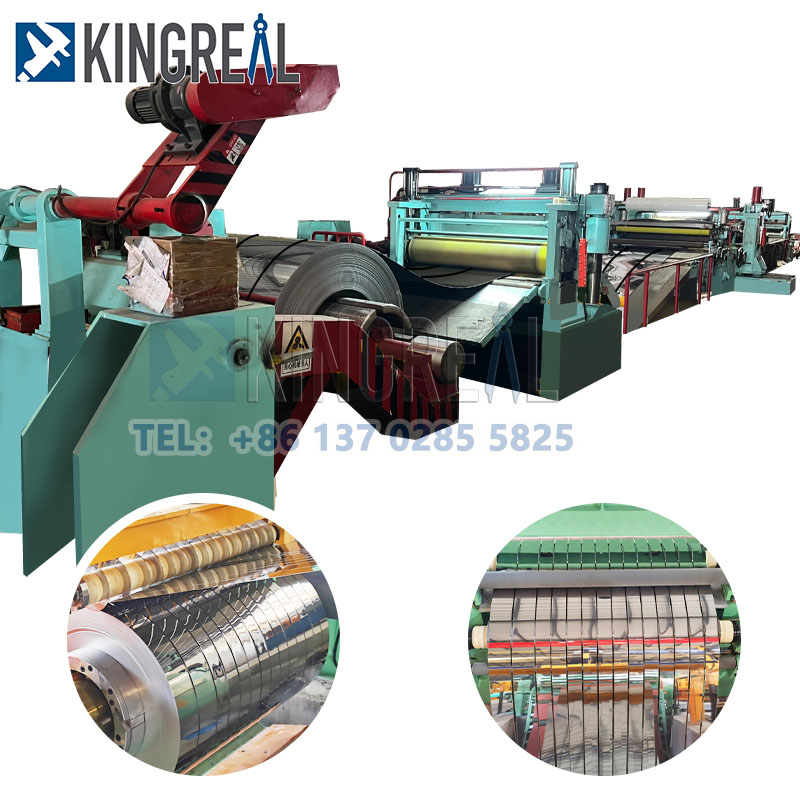

Flow Chart Of High Precision Slitting Machine
Trolley for coil loading → Hydraulic decoiler →2 rolls feeding and 3 rolls leveling → Loop bridge → High precision shearing machine → Side scrap recoiling →Pre-seperator and damping tension machine → Rewinding
Reference Specification Of Slitting Machine
|
Machine Type |
Coil Processing Equipment |
|
Coil thickness |
0.3mm--3mm |
|
Coil diameter |
Max 2100mm |
|
Coil width |
500mm-1600mm |
|
Coil inner diameter |
≥508 |
|
Coil weight |
Max 20T |
|
Precision of slitting width tolerance |
±0.03mm |
|
Slitting speed |
0—80m/min(adjustable) |
|
Slitting motor power |
75kw DC motor |
|
Rewind motor power |
90kw DC motor |
|
Slitting blades |
D205mmxd305mmxT15 |
|
Material of the slitting blades |
Cr12Mov(SKD-11) |
|
Min slitting width |
≥30mm |
|
Slitting blade quantity |
22 pcs |

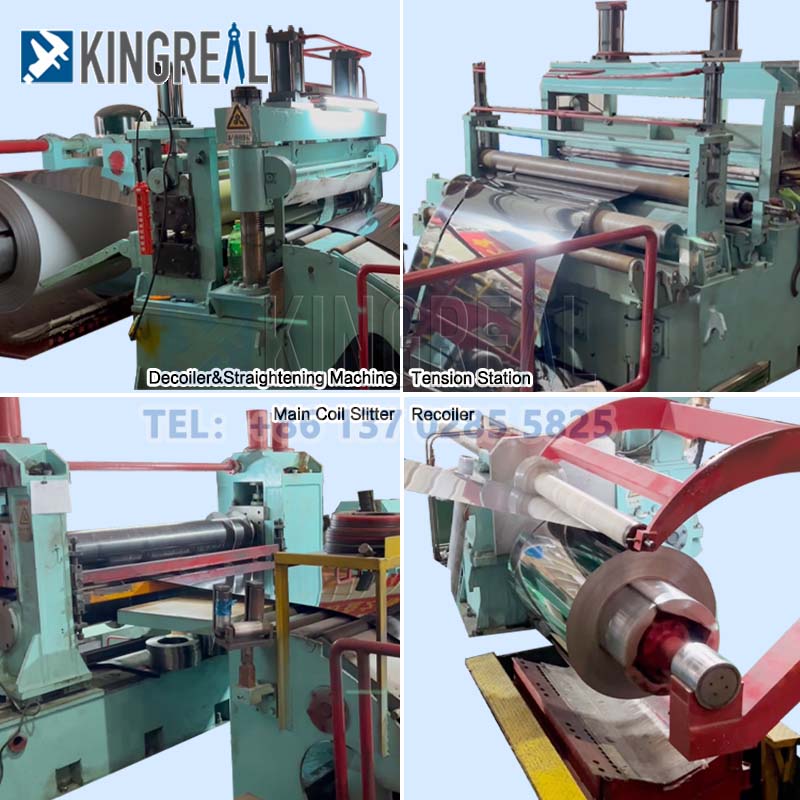

Main Part Of Coil Slitting Machine
Function:Decoiler is a key component in thecoil slitting line, mainly used to support and open the strip coil and feed the strip into the leveling machine.
KINGREAL provide the trolley for loading the heavy coil, which can carry out unwinding work more conveniently.
In order to achieve a higher productionslittingspeed, KINGREAL adopts the slitting method of flying shears, which can realize the progress of continuous slitting without stopping feeding.
Its production speed can reach up to 220m/min.

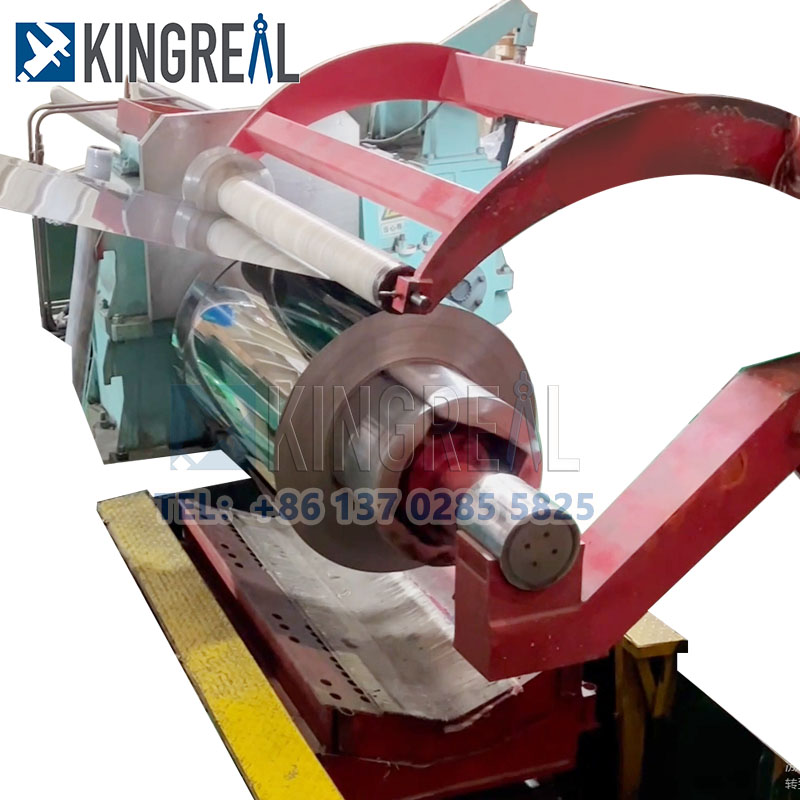

The coil car/elevator simplifies the unloading of slit coils from the coiler jaws. The coil car is powered and can move back and forth on the track.
The coil trolley is moved up and down by the hydraulic cylinder. For light coils, the coil hanger can be driven by A/C geared motor/hydraulic motor

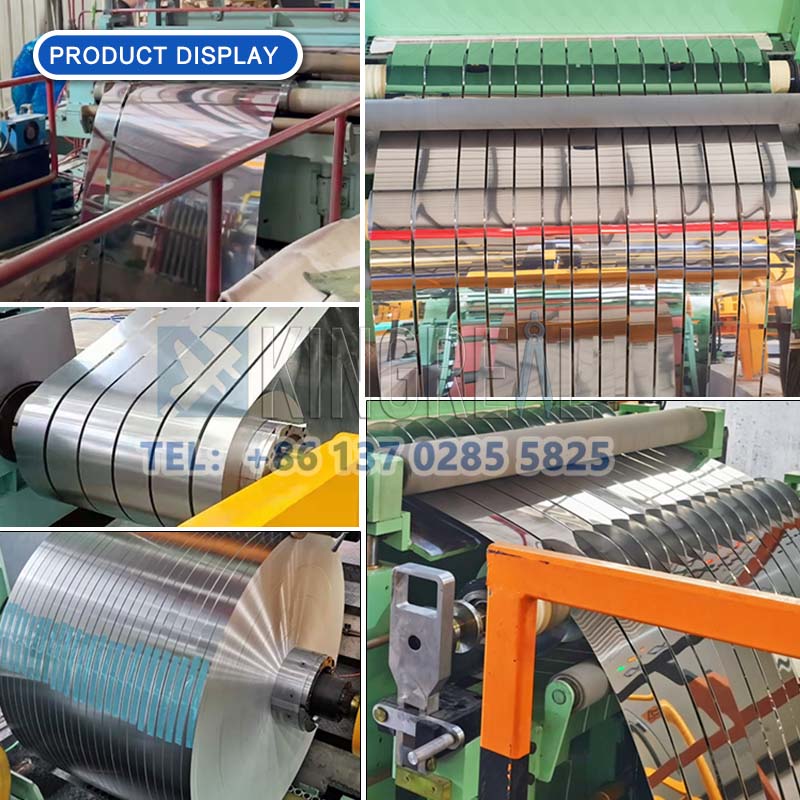

Application Of High Speed Steel Coil Slitting Machine
This machine is widely used in the manufacturing plants of steel pipes, home appliances, furniture, auto parts and other products. It can cut aluminum plates, iron plates, copper strips, galvanized steel, hot-rolled steel, cold-rolled steel, stainless steel and other materials.
Why Choose Us?
KINGREAL has its own technical team, sales team and production team. From production and sales to transportation, we can complete the whole process professionally.
In order to ensure the normal installation and operation of the machine, KINGREAL provides online and offline after-sales installation services.
Online includes video tutorials and full online guidance from engineers;
Offline means that KINGREAL dispatches engineers to the customer's local factory for on-site installation guidance.
In order to be able to effectively solve customer needs in the first time, KINGREAL has set up localized service points in many countries and regions, such as India, Russia, Turkey, the United Arab Emirates and Qatar.
Localized service points in other countries and regions are also in progress
