Professional manufacturer and supplier KINGREAL MACHINERY provides complete solutions in coil processing manufacturing lines, including stainless steel slitting equipment. We can offer （1-8）X1500mm Stainless Steel Coil Slitting Machine for various materials. We have established partnerships with clients all across the world since 1995.
Video About Stainless Steel Coil Slitting Machine

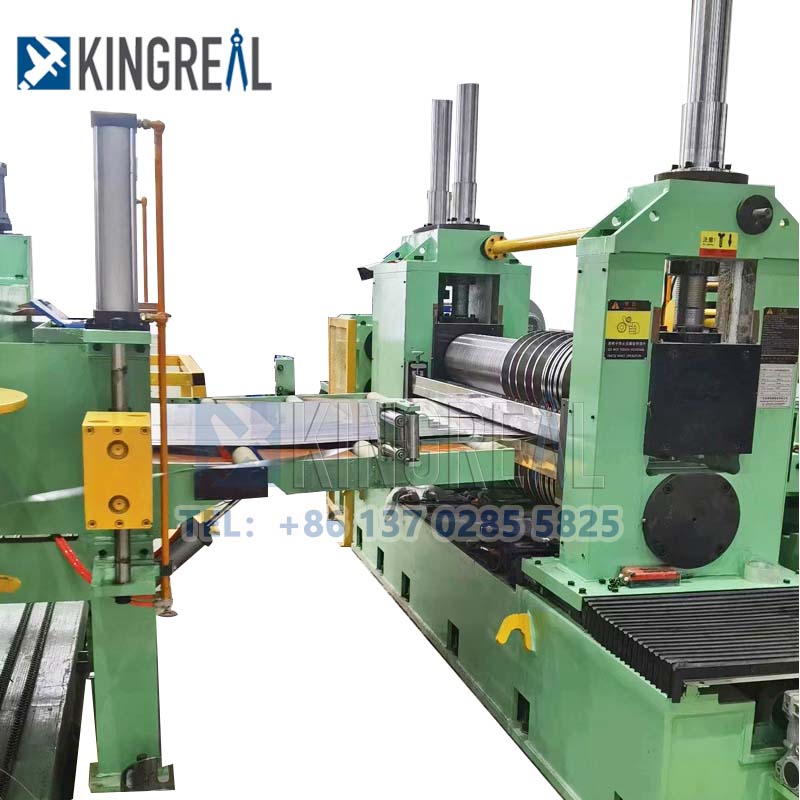

The stainless steel material coil can be slit into strips of the same width using the KINGREAL stainless steel coil slitting machine, and these strips can then be rolled up based on the needs of the customer.
The KINGREAL manufacturer can guarantee the accuracy and high-speed production efficiency of the slitting machine due to their extensive production expertise in coil slitting lines.
The ability to precisely slit stainless steel coil into various widths, along with high-quality production components and precise cutting equipment, are essential to the success of production.
Specs For（1-8）×1500mm Coil Slitting Machine
|
Material |
Stainless Steel or Other |
|
Width Range |
500-1800mm |
|
Coil O.D. |
2000mm Maximum |
|
Slitting Speed |
220m/min |
|
Thickness Range |
0.3-2.5mm |
|
Slit |
35 pieces maximum |
|
Belt speed |
20 m/min maximum |
|
Capacity |
258KW |
The Slitting Line's Manufacturing Process
Hydraulic Uncoil -- Pinch Leveler Shear -- Front loop&Bridge -- High Speed Slitting Machine-- Rear loop Pit & Bridge -- Sheet Transmission Belt-- Rewind
Details About The Stainless Steel Coil Slitting Machine's Major Component
- A single cantilever construction can support 12 tons of weight.
- 500mm is the minimum support.
- Hydraulic tension is used for uncoiling.
- Frequency conversion power for electric unwinding is 7.5KW.
- A 4Kw hydraulic pump.
With materials weighing up to 12 tons, KINGREAL has created an uncoiling trolley that can finish the rewinding process.
The most crucial component of the entire production line for slitting machines is the slitting parts, the caliber of which directly affects the caliber of slitting.
To create the 10mm-thick slitting blade, KINGREAL uses Cr12Mov alloys.
Advantage Of Stainless Coil Slitting Line
The full automatic KINGREAL aluminum slitter line may increase production effectiveness, save labor expenses, and produce better products.
Our slitting machine has the ability to cut different materials in addition to aluminum coils. such as PPGI, silicon steel, roll-coated plate, and stainless steel, among others.
KINGREAL also has a team of qualified engineers to create products in accordance with the various production requirements of clients.
KINGREAL has more than 20 years of production experience, a skilled workforce, and a facility of its own.
Application Of Aluminum Slit Coil
- Automotive Part
- Electrical
- Tags
- Fin Tube Application
- Other Metal Material Manufacturer
Our Exhibition
FAQ
Yes, KINGREAL STEEL SLITTER is a professional sheet metal processing machines manufacturer, we are an OEM.
We have been focusing on the field of machine manufacturing for more than 20 years.
There are 2 ways: either by plane or by train to Foshan/Guangzhou port. We will be picking you up in plane/train station, then we can go together.
12 months except human error, during which all parts damaged because of quality problem will be changed for free.
Parts that are out of warranty will be provided in factory price.
Within 60-80 days after receiving prepayment. Some machines in stock, can be delivered at any time.
