KINGREAL coil slitter machines can slit different materials, including perforated aluminum coils. The application of Aluminum Perforated Coil Slitting Machine is a hot trend these days.
KINGREAL coil slitting meets a wide range of production requirements, whether it is a standard coil slitting line or a special customized coil slitter (e.g. for perforated coils), KINGREAL's factory has dedicated engineers to design and put it into production.

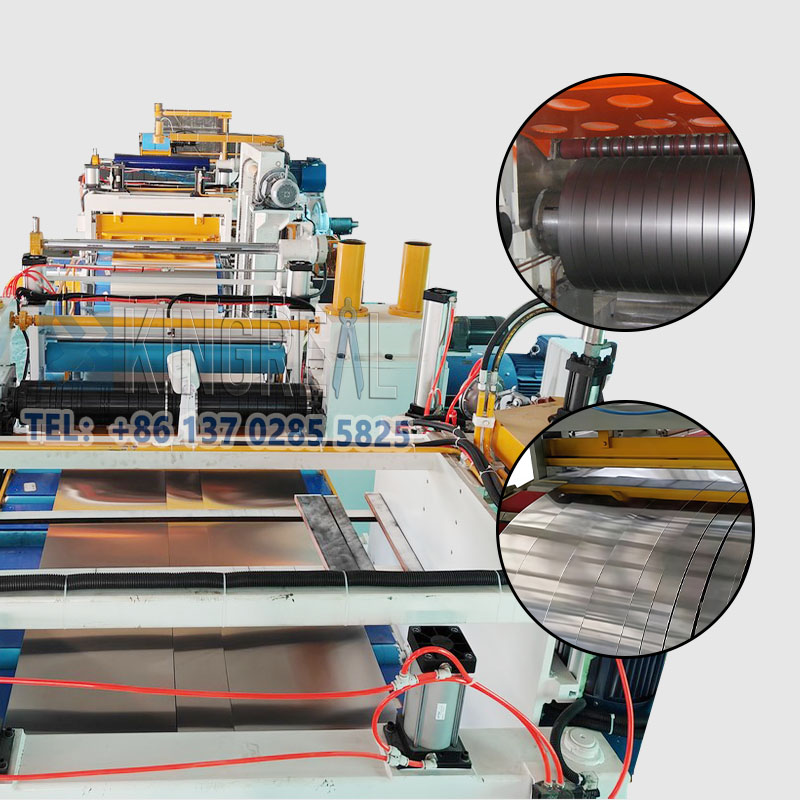

KINGREAL coil slitting machines automatically slit and wind aluminum coil material with precision. The cutting width of the slitter can be adjusted to the customer's needs and the gap between the knives can be set to achieve the highest quality trimming.
Decoiler → Clipping and shearing → Guiding → Slitting machine→ Winding edge material →Tension → Rewinding → Unloading of small rolls → Packaging
KINGREAL is able to offer both Coil Perforated Rewinding Machine and Slitter Lines, both of which are the most common coil processing machines. They are the most common coil processing equipment. They perform precision punching and winding of coils, followed by slitting, and are suitable for factories with large production requirements and a wide range of applications for punched coils, as they have a high degree of precision in terms of the thickness of the coils.
3 In 1 uncoiler punching and re-slittering machine equipment can be used for the production of small perforated coils with small thickness and size.
KINGREAL has installed belt tension equipment in the aluminum slitting machine to ensure that the belts in the drive system are maintained at the proper tension to improve drive efficiency and extend belt life.
In a metal slitting machine, the belt is an important component that connects the motor to the slitter rollers. It needs to withstand high speed rotation and heavy load working environment, so it needs to be maintained at the proper tension to avoid slipping or loosening during the working process, which may lead to poor slitting results or malfunctions. Belt tension needs to be adjusted according to specific working conditions and requirements to ensure the stability and reliability of the drive system.
KINGREAL designed this double slitter head slitting machine to minimize the time required to change the knife seat and increase production efficiency in order to optimize the slitting speed of the coil slitting machine. A maximum manufacturing speed of 220 m/min is achieved.
The components of the double slitter slitting machine are as follows: a side guide, a waste rewinder, a high-precision slitter for fast exchange, a clamping and double slitting device, a winding machine, a tensioning device, and a hydraulic winder with the coil car.
|
Material of raw materials |
stainless steel, cold-rolled steel. |
|
Raw material thickness |
0.2mm-2.0mm |
|
Raw material width |
300-1550mm |
|
Raw material roll inner diameter |
Φ508mm |
|
Raw material roll outer diameter |
≤Φ1800mm |
|
Raw material volume weight |
≤12 tons |
|
Slitting speed |
0-80m/min (normal working) |
|
Total power |
about 150KW |
|
Floor area |
about 18m × 6m |
KINGREAL has its own production plant, which includes a frame casting shop, a CNC control shop, a parts machining shop and an assembly shop. In order to ensure the production quality of the machines, the whole line will be tested and adjusted in the factory. KINGREAL welcomes all customers to visit our factory.
(KINGREAL Technical Support In Customer Factory)
