KINGREAL metal coil processing slit and cut to length machine manufacturer has a wealth of processing technology and equipment, which can meet various types of processing needs. KINGREAL can provide coil processing equipment, which including slit and cut to length machine. As one of the most professional manufacturers in China, we can provide customized processing services and professional technical support according to customer needs.
Video About Coil Processing
As a professional Coil Processing Slit And Cut To Length Machine manufacturer, KINGREAL can provide coil slitting machines, cut to length lines and integrated slitting and CTL production lines. According to the different needs of customers, professional design and precision casting are carried out to provide customers with the best quality machines.

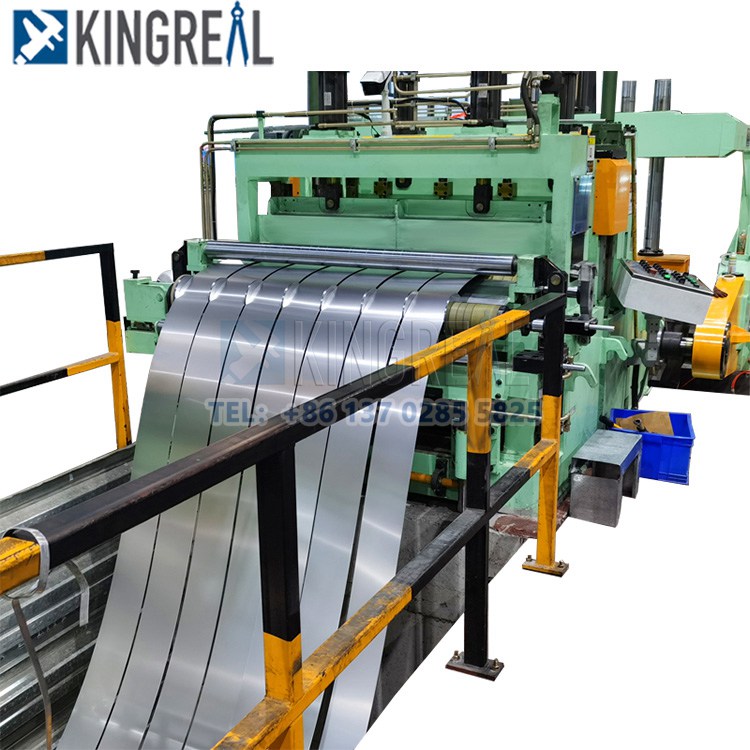

KINGREAL steel slitting machine divides the coils of different materials and thicknesses into the width specified by the customer through decoiler, leveling, cutting and other processes, and then rewinds them.
KINGREAL cut to length line cuts coils of different materials into specific lengths and automatically stacks them.

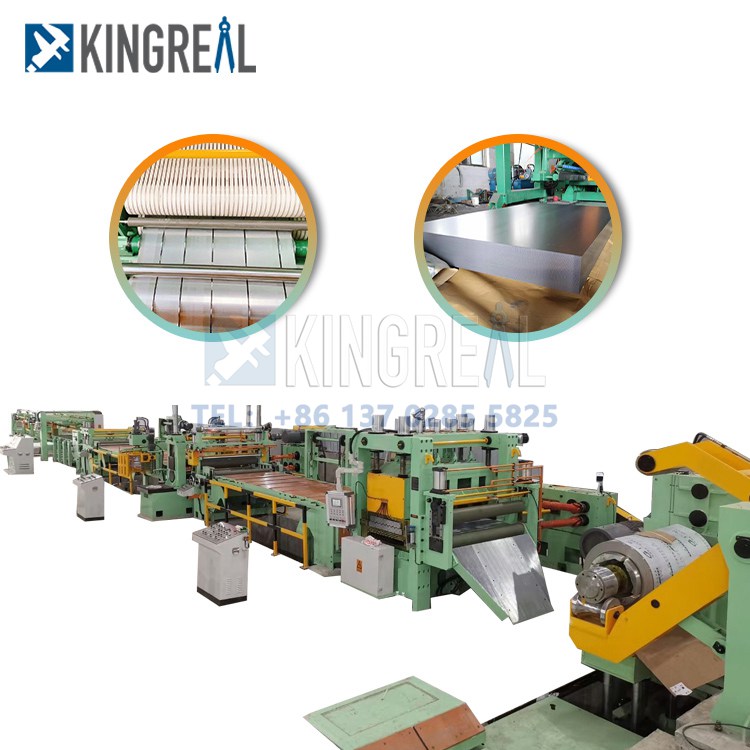

Combine Slitting and Cut To Length Production Line

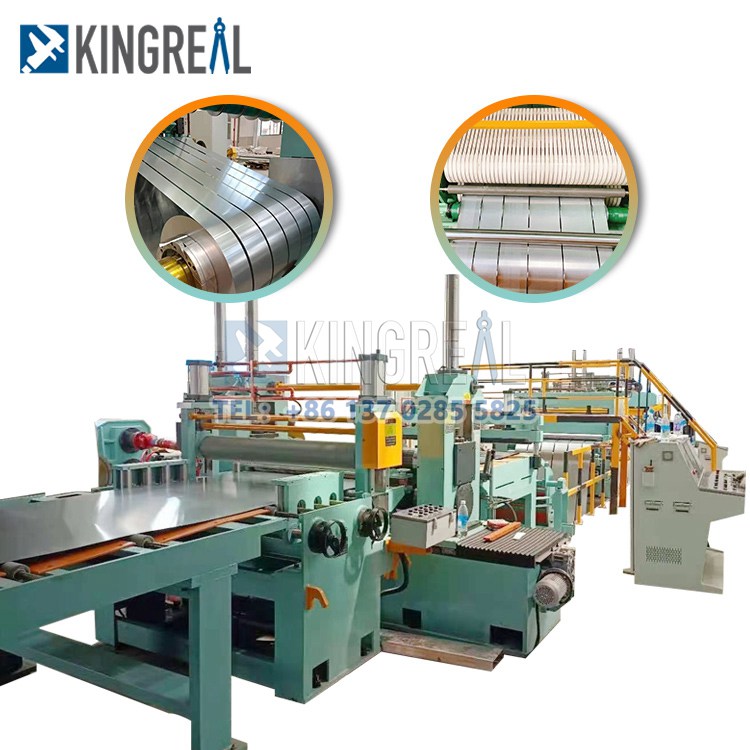

In addition to the separate slitting and cut-to-length production lines, KINGREAL also specially designed a slitting-shearing integrated production line, which can meet the two production needs of slitting and cut to length with one machine.
KINGREAL slit and cut to length production line can realize the two functions of slitting and cutting to length, and adopts advanced servo control system to provide precise adjustment. At the same time, it also adopts imported automatic lubrication system, which can effectively reduce the wear and tear of equipment.

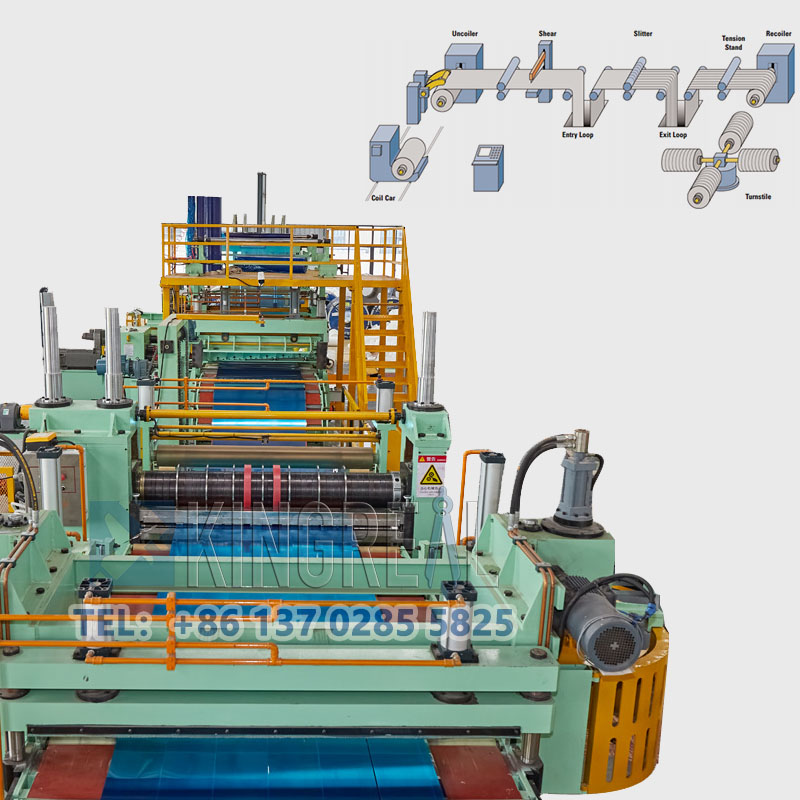

Trolley For Loading Coil -- Hydraulic Decoiler -- Leveling Machine -- Slitting/Shearing Machine -- Tension Part -- Rewinding/Stack
Specification Of Slitting and Cut To Length Machine
|
Basic Data |
Coil Material |
Stainless, Steel, Galvanized, HR,CR and so on |
|
Coil Thickness |
0.3-3mm |
|
|
Coil Width |
500-1600（Max） |
|
|
Coil I.D |
508 mm/610mm |
|
|
Coil O.D |
1800mm（Max） |
|
|
Coil Weight |
0-20T |
|
|
Slitting Machine |
Knife Pivot Material |
40Cr |
|
Blade Material |
6CrW2Si |
|
|
Width Precision |
≤±0.03mm |
|
|
Line Speed |
0-120m/min |
|
|
Shearing Machine |
Leveling Rollers Material |
GCr15 |
|
Leveling Rollers Hardness |
HRC52-60 |
|
|
Cutting Speed |
≥25pieces/min |
|
|
Tolerance Of Length Error |
≤±0.5mm/2000mm |
Main Component Detail
Metal leveling machine is a kind of precision mechanical equipment, which is mainly used to level the surface of metal coils to achieve more accurate size requirements and meet customer quality requirements.

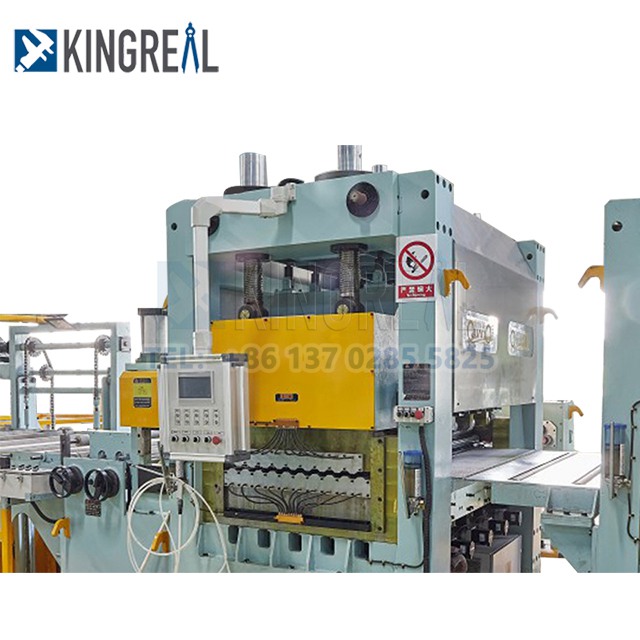

KINGREAL Shearing Machine is a machine used to cut sheet metal. It usually consists of a scissor wheel driven by an electric motor, which can quickly and accurately cut the metal sheet, and realize automatic processing in a short time.
Shearing Machine steel thickness can vary from 0.2 mm to 8 mm, and the maximum shear width can reach 1000 mm. It can customize shearing machines of different sizes according to the requirements of users, and can realize various metal plate shearing processes.
Powerful double-spindle circular slitting knife. Material: 40Cr, forged and tempered, intermediate frequency quenched, hard chrome plated, finely polished.
Application Of Slitting And CTL Production Line

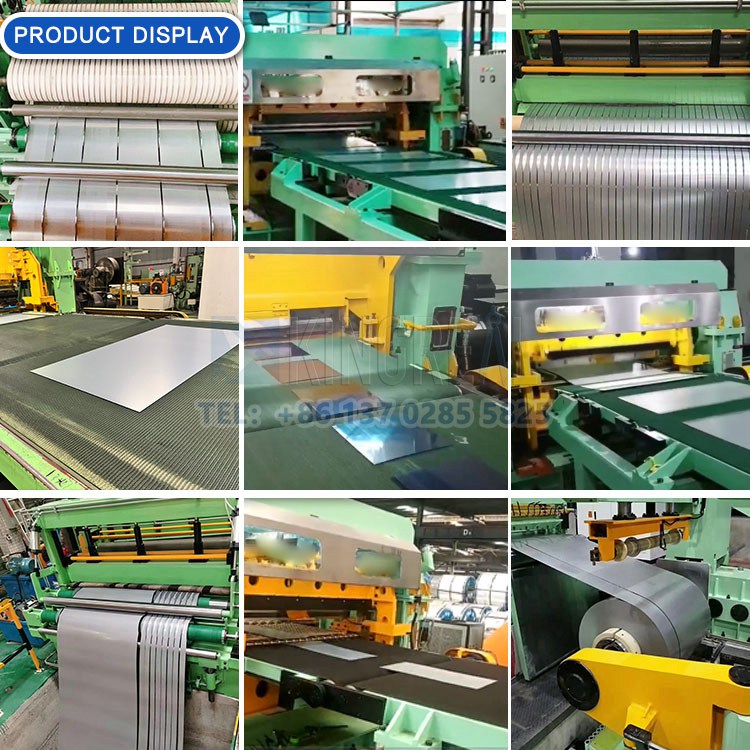

Final Product Display
FAQ
12 months except human error, during which all parts damaged because of quality problem will be changed for free.
Parts that are out of warranty will be provided in factory price.
Within 60-80 days after receiving prepayment. Some machines in stock, can be delivered at any time.
If buyers come to our factory to inspect, the training to install and operate is provided face to face.
If not, Manual book and video is provided to show how to install and operate.
Yes we can, we use iron wire for fixing machines in container, also small wood pads to hold machines tight and don't move around during shipment.
