Do you want to find the high precision metal plate straightener machine for leveling coils of different materials and thicknesses? Send us your requirements and we will provide you with a customized design solution!

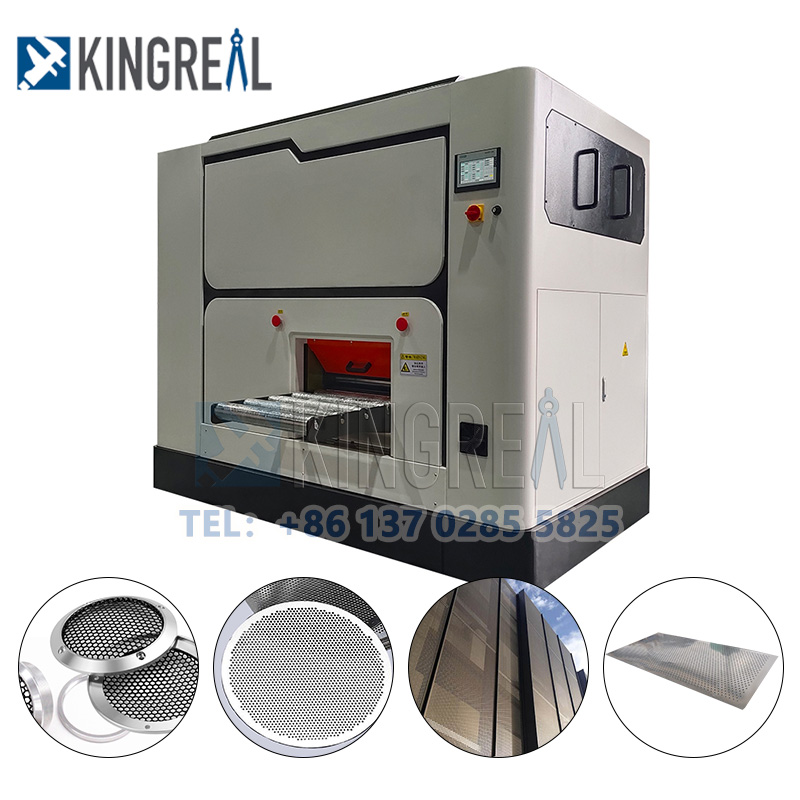

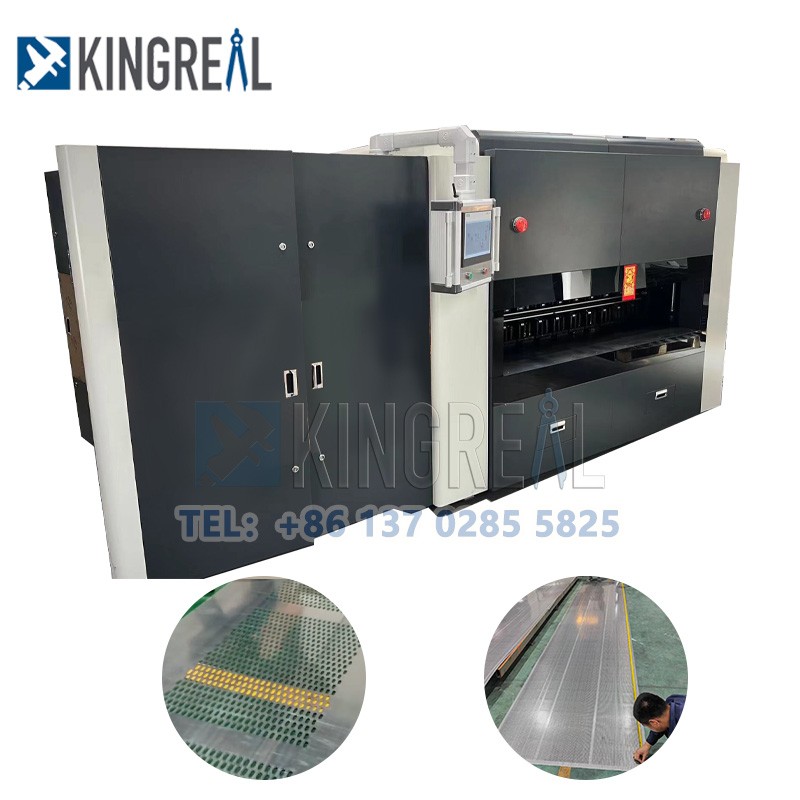

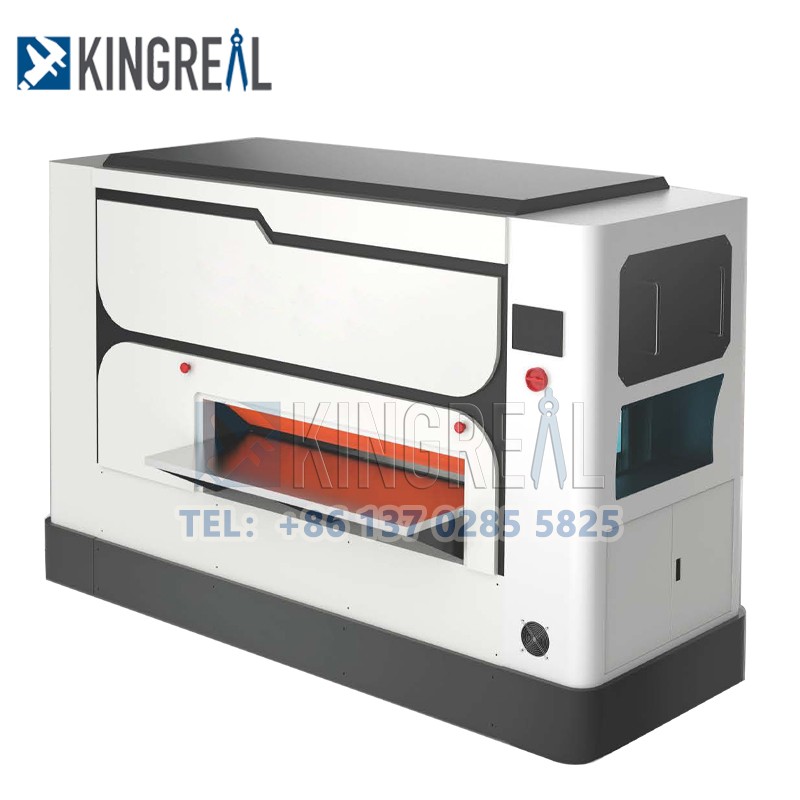

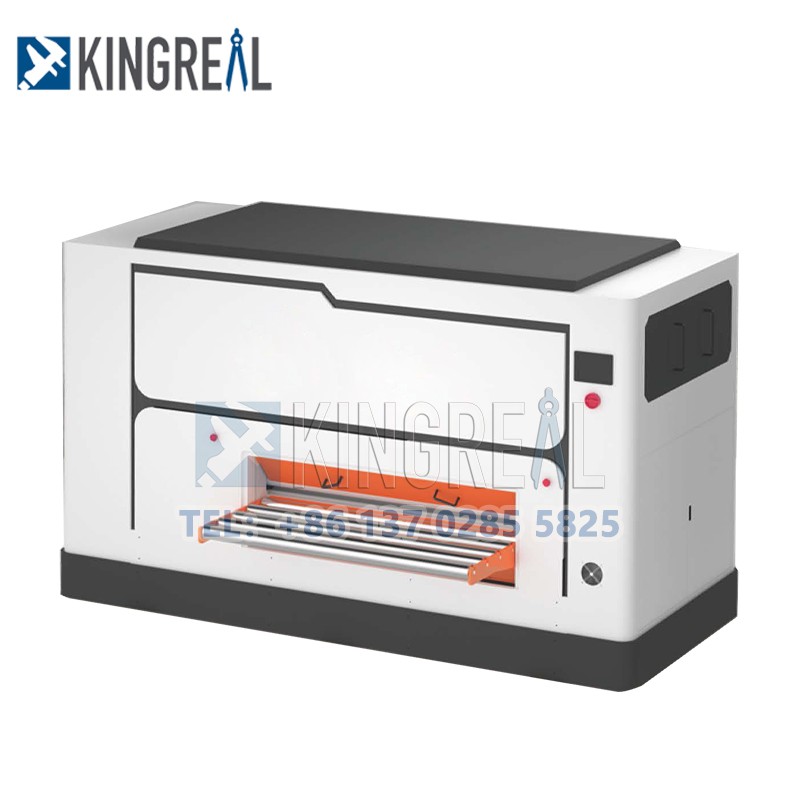

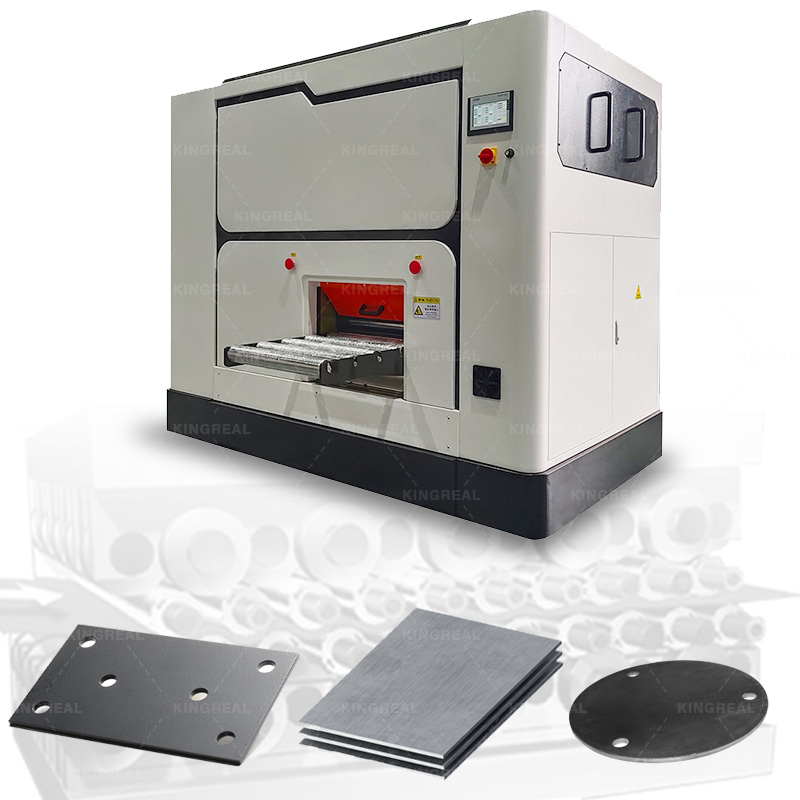

KINGREAL Metal precision leveling machine is a device used for flattening metal sheets, which flattens uneven metal sheets through the squeezing action of upper and lower rollers. These machines are usually equipped with multiple sets of leveling rollers, and the material is bent forward and backward several times through these staggered rollers to achieve the leveling effect. The leveling machines can be designed with either a top-four bottom-five or top-three bottom-four arrangement and are equipped with transfer rollers at the front and rear to facilitate material conveying and handling.

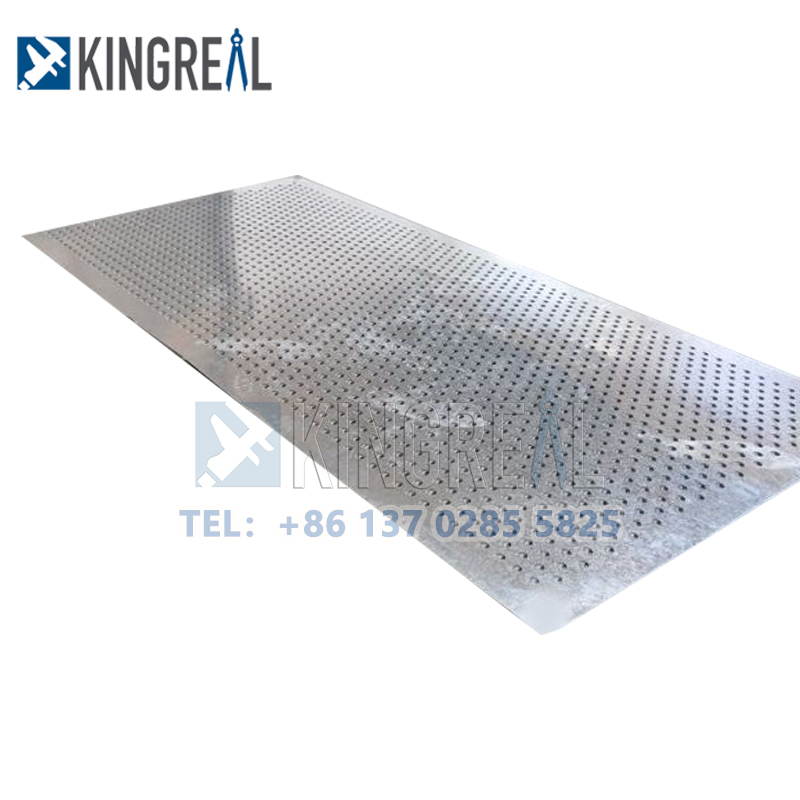

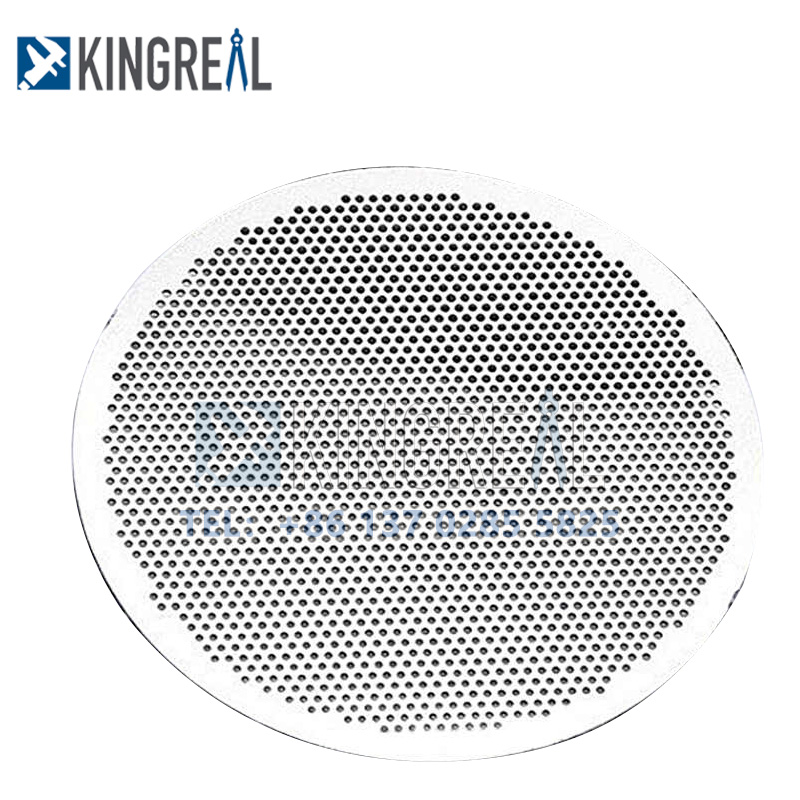

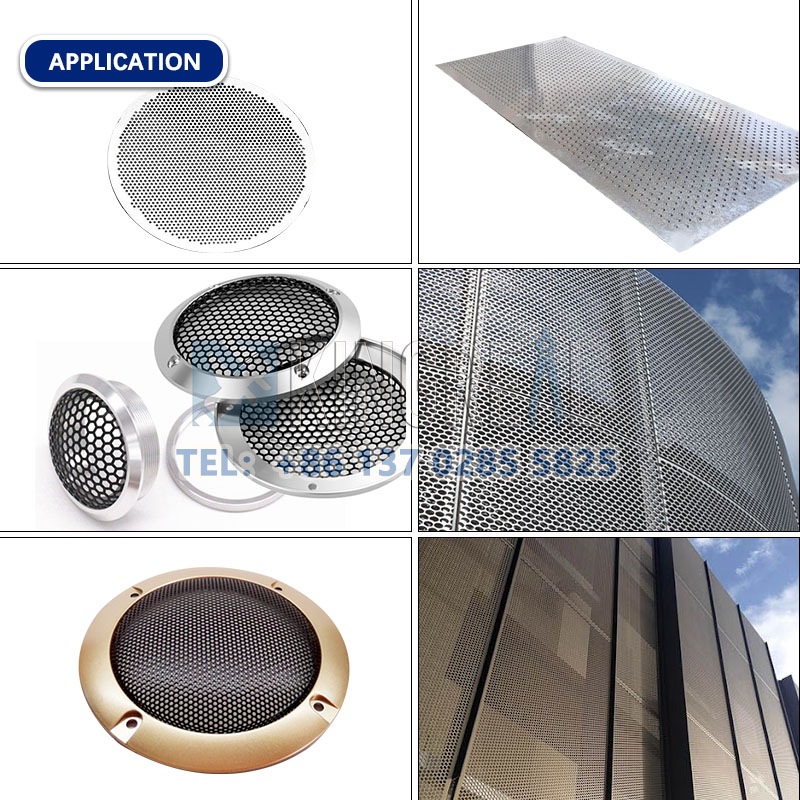

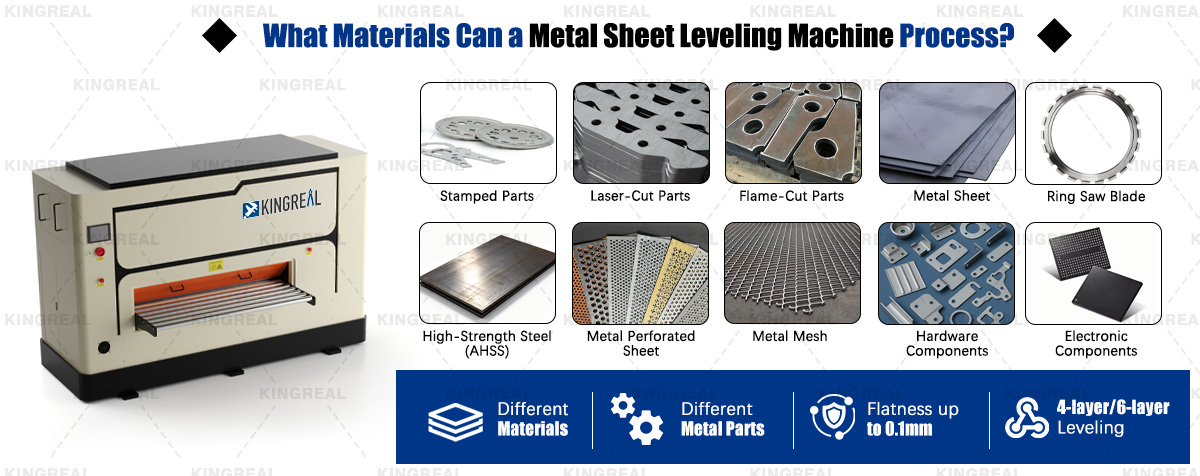

The levelers are reliable in operation and can effectively level the surface of metal plates, and are commonly used for leveling a wide range of materials such as steel plates, stainless steel plates, copper plates, aluminum plates, and other materials. They have a wide range of applications in the vehicle manufacturing, locomotive manufacturing, construction industry, medical technology industry, chassis manufacturing, stamping and other processing industries, and play an important role in the perpendicularity, parallelism and appearance of industrial structural components.
|
Max.criterionWidth |
400-2200mm |
|
RollerDiameter |
60mm |
|
Max.thickness |
6mm |
|
Thicknessrange |
1-6mm |
|
Levelingroller quantity |
（Upper9pcs/ Lower10pcs） |
|
Levelingspeed |
0-12m/min |
|
Min.work-piecesize |
15x120mm |
|
Voltage |
AC3phase380V50HZ（Orlocalvoltage） |

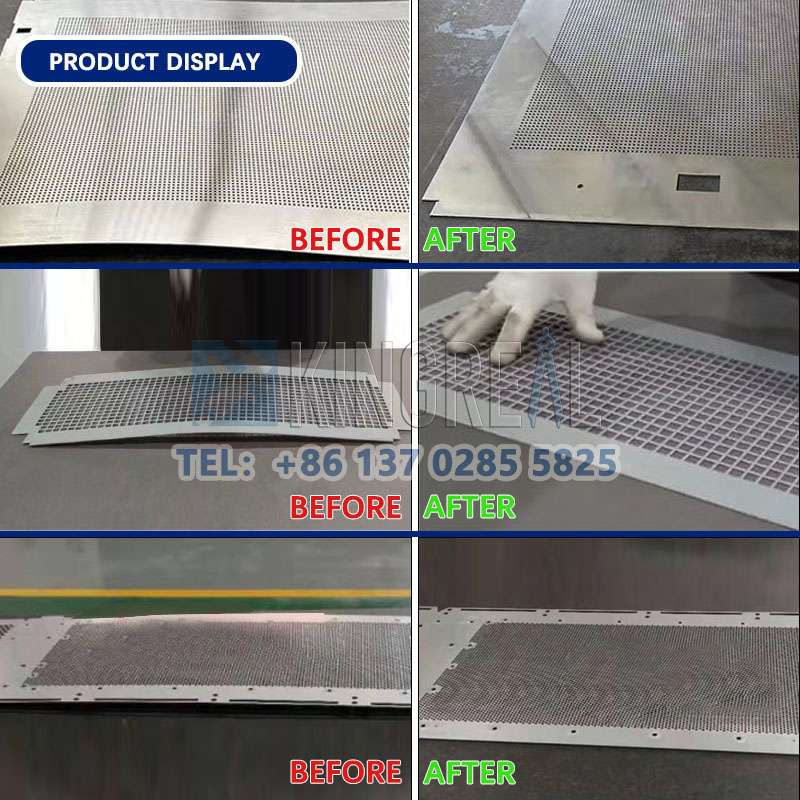

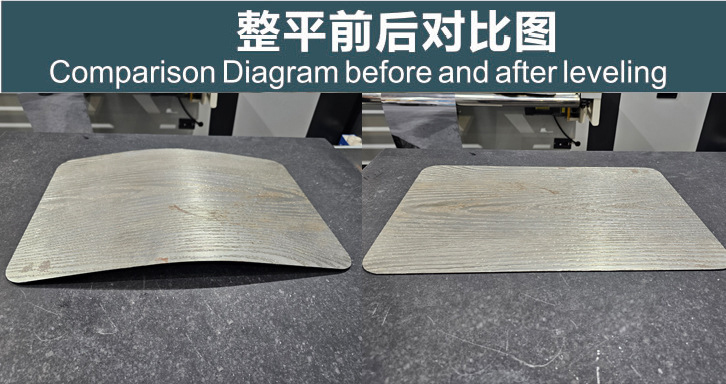

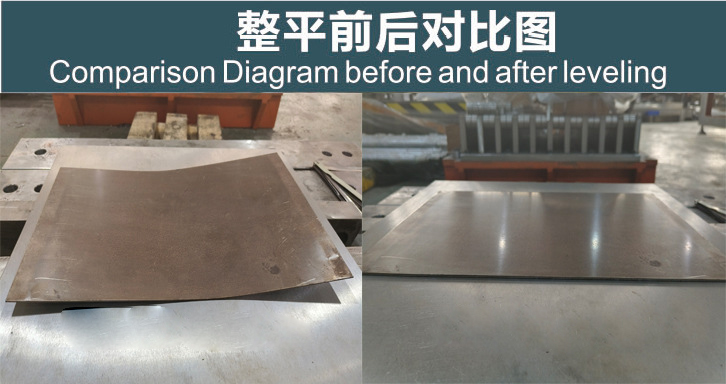

It is mainly based on the elastic-plastic bending deformation of the material. Through a series of staggered arrangement of leveling rollers, the machine performs forward and reverse bending on the metal plate for many times, and such repeated bending can gradually reduce the unevenness of the original curvature of the plate and the degree of alternating curvature, so as to achieve high-precision leveling effect. At the same time, this process also helps to eliminate the internal stress of the material to ensure that the leveled material has a good flatness and stability.
①Leveling rollers: Multiple sets of rollers are arranged in staggered rows to achieve leveling by applying pressure and bending to the plates.
②Drive system: usually consists of motor and transmission device, used to drive the rotation of the leveling rollers.
③Control system: can be PLC control system, used to accurately adjust the pressure and position of the leveling rollers, in order to adapt to different thickness and material of the plate.
- Rich experience in project production, from drawing design to manufacturing with professional technical team;
-Factory specialized in manufacturing to ensure the production quality of the machine. There are specialized workshops from parts processing, casting to assembling.
-Complete after-sales service. We can provide both online and offline after-sales service to ensure the installation, commissioning and use of the machine.
