KINGREAL MACHINERY is a professional manufacturer and supplier of coil processing equipment in China, able to provide high quality automatic medium plate slitting machine. Our slitting machines are used for slitting a wide variety of materials with many user-friendly features incorporated using cutting-edge technology. Welcome to contact us.
Video About Medium Plate Slitting Machine

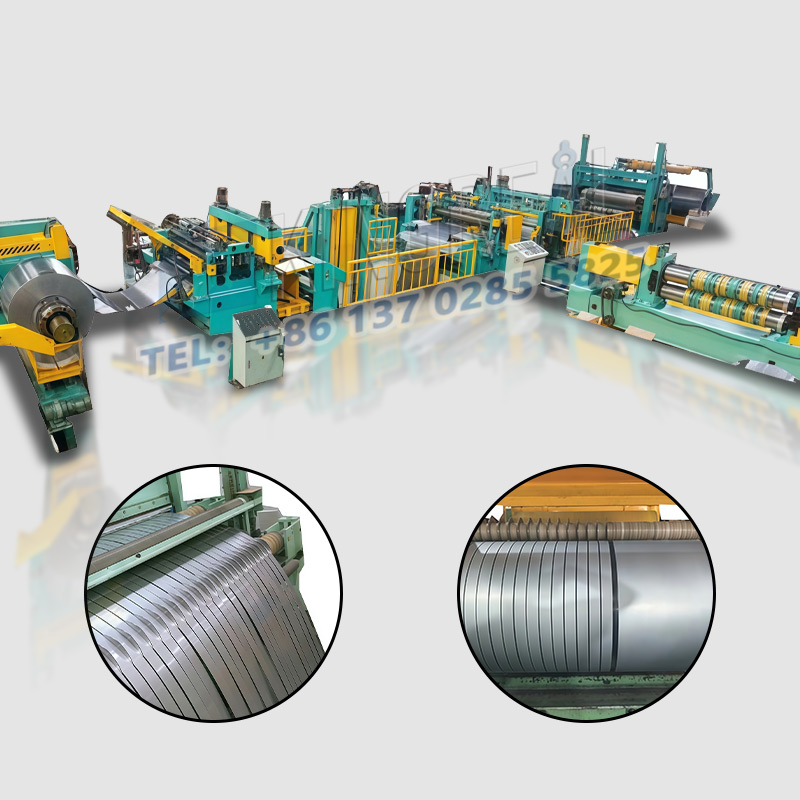

Description Of Automatic Medium Plate Slitting Machine
KINGREAL can provide the automatic medium plate slitting machine, which is specially designed for slitting coils of different materials, such as stainless steel, hot rolled steel, cold rolled steel, copper strip, aluminum strip and silicon steel etc.As a professional manufacturer in the field of coil processing, KINGREAL has its own professional team and production workshop, and can customize and produce different slitting machines according to customer needs.
Slitting machines manufactured by KINGREAL have many user friendly features incorporated into them using cutting edge technology. At the same time, in order to guarantee the quality and safety of the machines, these lines are tested according to many quality-related standards before being supplied to customers.
Automatic medium plate slitting machines are tested under various parameters to ensure their high quality and effectiveness. It is highly appreciated by people in the global market, such as Russia, India, Saudi Arabia, Turkey, Vietnam and the United Arab Emirates, etc.
Production Process Of Automatic Medium Plate Slitting Machine
Trolley For Loading Coil -- Hydraulic Decoiler -- Straightener -- Shearing Machine -- Trimming Re-Coiler -- Accumulator -- Separating Unit -- Tension -- Rewinding
Reference Date Of Coil Slitting Machine:
|
Model： |
DYZJ1-6*2000 |
|
Coil thickness： |
1-6mm |
|
Coil width： |
800-2000mm |
|
Coil weight： |
≤25000KG |
|
Coil I.D.： |
Φ508，φ610，φ760 |
|
Coil O.D.： |
≤2200mm |
|
Strip width： |
≥10mm |
|
Number of strip： |
10-20 |
|
Slitting Accuracy： |
+0.25mm |
|
Line speed： |
0-60m/min |
|
Control System： |
PLC Touch Screen |

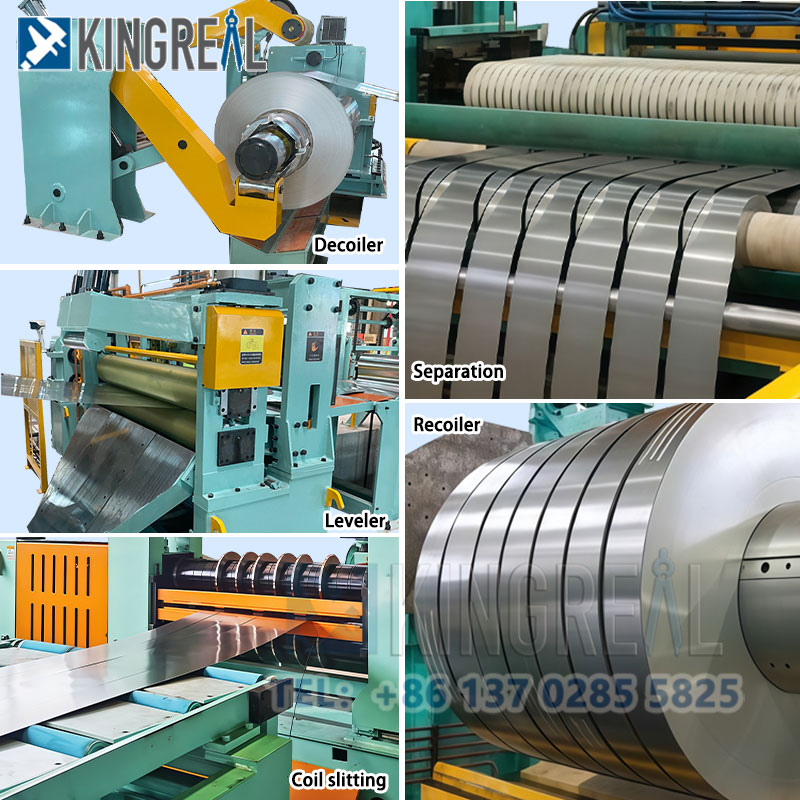

Main Part Detail Of Coil Slitting Machine
KINGREAL cut-to-length decoilers/uncoilers allow multiple coils to be pre-placed on the loading station. According to the needs of different customers, KINGREAL provides two options of single-head and double-head decoiler.
At the same time, for large-size coils, KINGREAL will also provide loading trolleys to realize automatic coiling.
KINGREAL straightener machine are used to level the coils to the desired flatness range. Feed rollers make it easy to feed paper in and out of the straightener.
Rollers can be adjusted manually, hydraulically or electrically. Roll hardened to HRC 55-60. Provides good wear resistance and long service life.

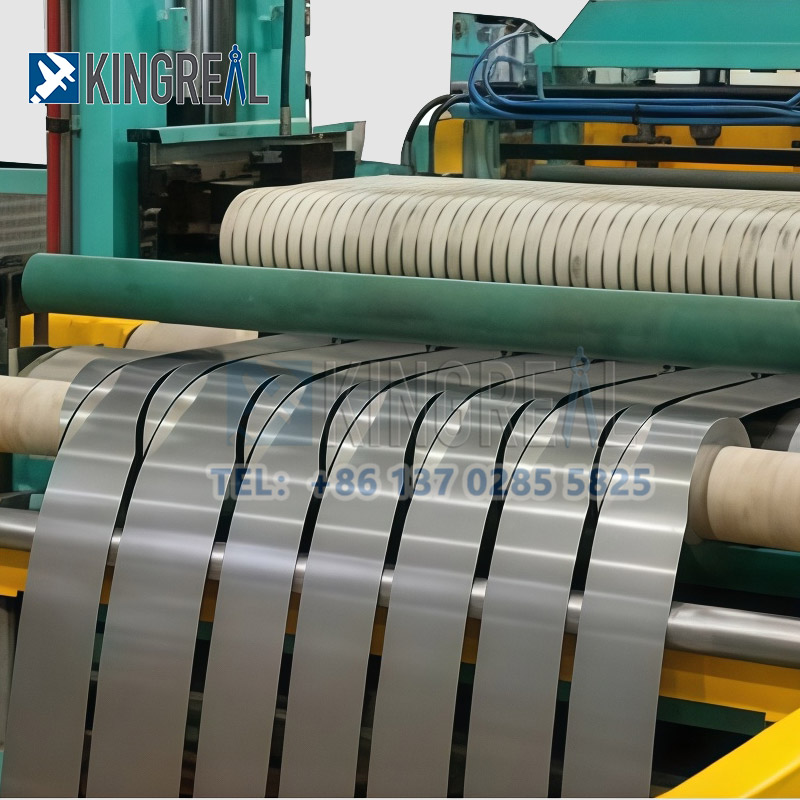

According to the slitting requirements provided by the customer, the slitting part will cut the coil along the width direction. The slitter is equipped with feed rollers for easy entry and exit of sheets. Dividers are provided to provide gaps between the slits.
Advantage Of The Automatic Medium Plate Slitting Machine
High level of automation brings economic benefits
Automatic Strip Threading
Minimal strip burrs
Less maintenance
Easy installation
Application Of Steel Coil Slitting Machine
- Metal cutting industry
- Metal industry
- Pipeline industry
And so on
FAQ:
Yes, we are a manufacturer. We have a factory and our own technical team, feel free to visit us.
Our factory is located in Foshan city, Guangdong Province. So there are two ways to our city.
One is by flight, direct toFoshan or Guangzhou Airport. Another is by train, direct to Foshan or Guangzhou station.
We will pick you up at the station or airport.
12 months, during which all parts damaged because of quality problem will be changed for free.
Within 45-60 days after receiving prepaid. Some machines in stock, can be delivered at any time.
