As one of the professional Coil Slitting Machine manufacturer, KINGREAL can offer Metal Coil Slitter Rubber Spacer for different type slitting machine, which used to keep in the right position during the slitting process to avoid offset, thus ensuring the accuracy of slitting.
KINGREAL STEEL SLITTER Metal Sheet Slitting Machine is designed for slitting and rewinding the coils of different material thicknesses, KINGREAL Metal Sheet Slitting Machine can be slit into different sizes and number of strips according to the customer's production needs, and can be modified to achieve different sizes of slitting process in the same production line by modifying the configuration of the knife block. KINGREAL Metal Sheet Slitting Machine can slit different sizes and number of strips according to customer's production requirements.
The thickness of common slitting coils is 0.3-3MM, and even the range of thick plates is as high as 3-12MM. For different thicknesses of coils, the design of the slitting machine's knife block is especially strict, which directly determines the accuracy of the slitting dimensions and the quality of the finished products. After more than 20 years of development and specialization, KINGREAL is able to provide customers with different solutions for Coil Slitting Production Lines, equipped with different accessories for different applications, including Rubber Spacer.

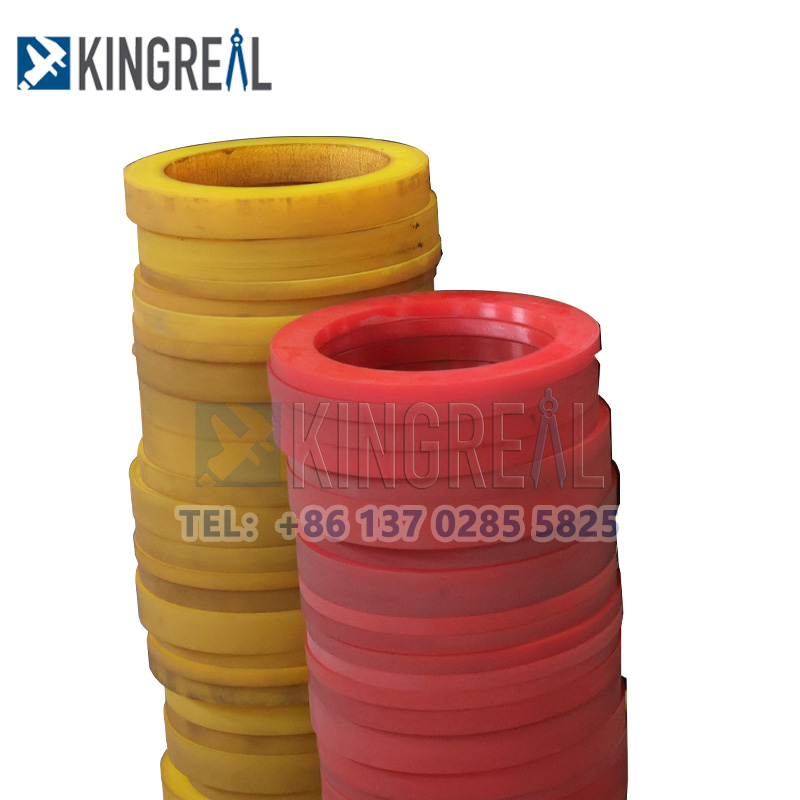

Typically, rubber spacer are mainly made of oil and abrasion resistant rubbers, such as polyurethane, and another commonly used rubber called butyl rubber. The choice of these materials, mainly because they have high wear resistance and strong oil resistance, but also has a strong corrosion resistance and deformation recovery ability. In actual production, mainly according to the different materials sheared by the metal slitter equipment, in the manufacture of this accessory according to the thickness of the shear plate, texture and other corresponding hardness adjustment.
In general, its hardness range should be kept at 60 to 90 degrees. In addition, attention should also be paid to the reasonable selection of the size of the rubber ring. Rubber ring size is mainly in accordance with the size of the blade, the size of the blade spacer to determine the size of its inner diameter. That is to say, in the use of metal slitting machine equipment to deal with the plate, according to the thickness of the plate to choose the appropriate rewinding ring, so as to ensure that the appearance of the finished product of the slitting flat and surface quality.
Slitter Rubber Ring is mainly used for guiding, supporting and protecting the metal material during the unloading process. During the operation of the slitting machine production line, the rewind rubber ring can help to guide and position the metal strip to ensure its correct path in the slitting machine and avoid offset, thus ensuring the accuracy and consistency of the slitting. Due to the elasticity and abrasion resistance of the rubber material, the rewind rubber ring reduces direct contact between the metal strip and the internal parts of the slitter, reducing friction and wear and extending the life of the machine and material.
|
1. The rubber ring can absorb the vibration and impact of the metal bar in the slitting process, play a cushioning role, protect the material and machine parts, and prevent damage caused by impact. 2. Unwinding rubber ring can ensure that the metal strip passes through the slitting machine smoothly during the unloading process, which improves the working efficiency and reduces the downtime and maintenance cost. 3. Slitter rubber ring can protect the surface of the metal strip to prevent scratches and deformations during slitting and unloading process to ensure the quality of the product after slitting. |
 |
KINGREAL SLITTER is a facility owned by KINGREAL UNIVERSAL INDUSTRIAL LIMITED that specializes in the manufacturing of coil processing equipment. Its representative equipment is the coil slitting machine, and it has independent design, production, export, and after-sales service capabilities, among other comprehensive modern complicated services. For almost two decades, KINGREAL SLITTER has concentrated on offering clients full production solutions, consistently innovating in the coil processing equipment field, and securing patents acknowledged by the industry.
The objective of KINGREAL SLITTER is to build a solid, long-lasting relationship with its clients in order to provide long-term advantages for their output. To far, KINGREAL SLITTER has been successful in selling a wide variety of equipment to over 20 nations and areas, including Saudi Arabia, Turkey, Indonesia, Canada, and the United States.
