KINGREAL is a professional manufacturer in the field of coil slitting machines in China, able to provide high quality narrow strip coil slitting machine.With more than 20 years of production experience, we can design and produce slitting machines according to the different needs of customers. Looking forward to reaching stable cooperation with customers from all over the world.
Video About Narrow Strip Coil Slitting Machine

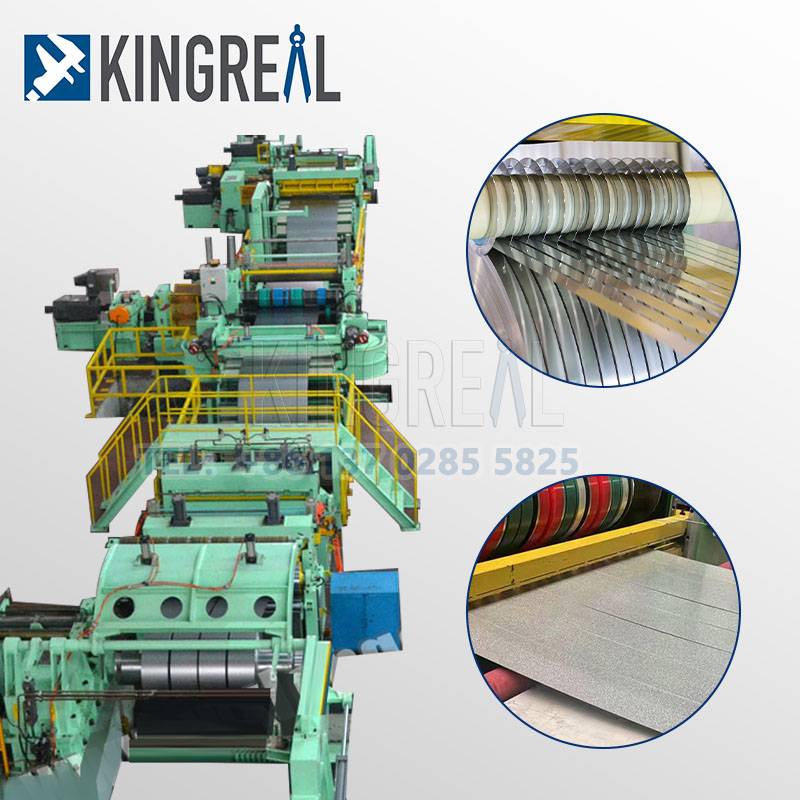

Description Of Narrow Strip Coil Slitting Machine
The narrow strip coil slitting machine is one of our most feature product, which can divide the coils of different materials, such as metal steel, stainless steel, copper coil, silicon steel, galvanized coil, hot-rolled steel into narrow strips of the same width, and then rewind them.
The biggest feature of the narrow strip coil slitting machine is that it can divide the coiled material into strips of different widths and different numbers according to the needs of customers. The minimum width can be divided to 2mm, up to 30 narrow strips.
Components of narrow strip coil slitting machine
|
Name |
Number |
|
Trolley For Loading Coil |
1* |
|
Hydraulic Decoiler |
1* |
|
Pinch Roll With Lever |
1* |
|
Slitting Machine |
1* |
|
Transition Bridge |
2* |
|
Side Guider |
1* |
|
Scrap Wider |
1* |
|
Separator And Tension Unit |
1* |
|
Rewinding Machine |
1* |
Specification Of Narrow Strip Coil Slitting Machine
|
Machine Type |
Coil slitting machine |
|
Coil Material |
HR, CR, stainless, copper, aluminum, and so on |
|
Coil Thickness |
0.3-3mm |
|
Coil Width |
500-1600（Max） |
|
Coil I.D |
Φ508 mm/610mm |
|
Coil O.D |
φ1800mm（Max） |
|
Coil Weight |
20T |
|
Slitting Speed |
0-220m/min |
|
Slitting Power |
380V/50Hz/3Ph |
|
Slitting Capacity |
210 Kw |
All the relevant data above are for reference only, and the data of specific slitting machine need to be customized according to the actual needs of customers.

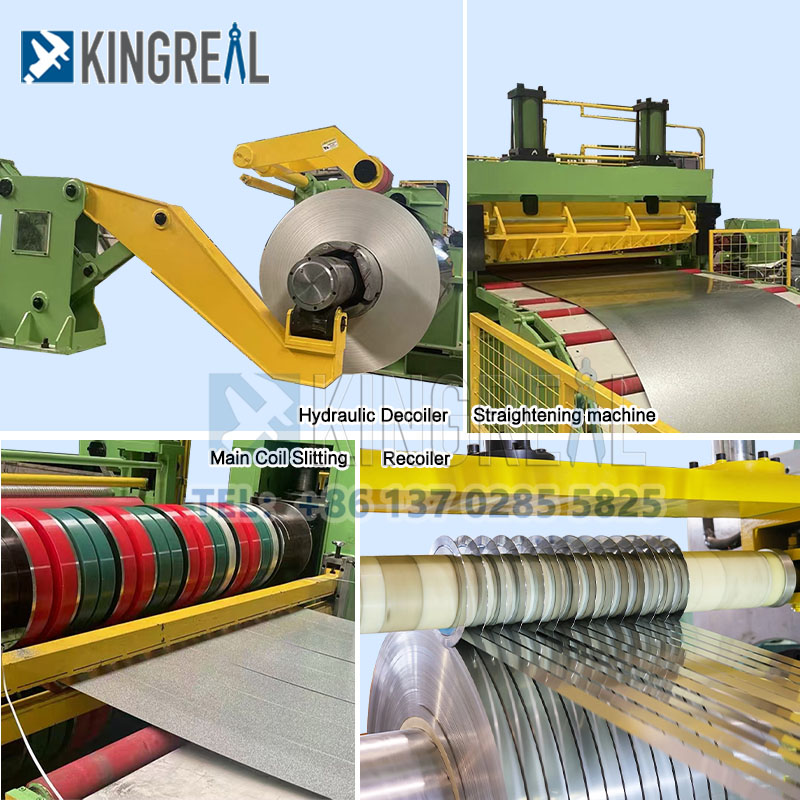

Main Parts Detail Of Coil Slitting Machine
KINGREAL designed the trolley for loading the heavy coil, which is convenient for decoiler. And the coil slitting machine decoiler part is adopts hydraulic collapsible roller, no harm to the bottom layer of material. It can be stretch uncoiling or manual unloading, effectively prevent the material from deflection and scratching.
1. The coil slitting head mandrel is fixed in the eccentric sleeve. If the blade is just polished, the slitting angle remains the same.
2.KINGREAL slitting line has two slitting heads. While one is running online, the other can be set up for equipment, which can greatly eliminate production downtime.
3. Hydraulic lock nut is used for higher accuracy of blade positioning.
The live jacket is used to receive the strip from thedecoiler in a discontinuous manner while feeding the strip to the forming machine.
It stores a certain amount of strip to ensure that the main machine can work continuously during loading and shear butt welding.
Advantage Of The Narrow Strip Coil Slitting Machine
KINGREAL provides a variety of slitting options according to different needs of customers, such as fixed shears, flying shears and rotary shears, etc.
Each slitting method has its own advantages and characteristics, and customers can choose according to their own.
KINGREAL provides customers with a variety of budgeting methods. There are both heavy-duty precisioncoil slitting machine for higher budgets and simplecoil slitter for low-budget.
No matter what type of slitting machine, KINGREAL will ensure the quality of the machine.
KINGREAL not only has its own professional designers and factories to ensure the production of machines, but also has its own professional after-sales team.
Including the after-sales installation team, providing localized installation services to ensure the smooth installation of the slitting machine in the customer's factory.
And after-sales questions and answers to help customers solve all difficult problems.
